Coaters/Flexibles/IML/EBEAM
Add surface protection or primers to materials
blue brochure
Get an overview of our compact machines encompassing complete automated converting lines

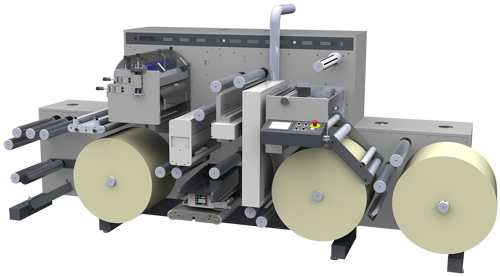

UC500 Coater with lamination & flexo varnish

  • Maximum flexibility with UV and water-based varnish
  • Hot-air module for water-based varnish
  • Ideal for banners, folders and post cards

Characteristics

Coater with lamination and flexo varnish. Single unit in-line or off-line converting for digital workflows.



The converting line consists of a UV varnish and lamination/supergloss. Operation can be both inline with a dancer or offline (optional unwind module).



Typical applications are banners, folders, post cards and roll-to-roll printed labels (not die cut). The line is operated by a touch display and available for web widths of 330mm (~13.0”) or 515mm (~20.3”).



Optional equipment
  • Separate unwind section, max. roll diameter 1000mm (~39.4”)
  • Hot-air module for Aqua varnish
  • Jogger table for sling stacking
  • Spot varnish
  • Corona treater
  • Back scoring / Perforation

Technical Specifications

Specifications Metric Imperial
Unwind mandrel diameter
(sleeves)
40 - 180mm ~1.6 - 7.1”
Max. unwind diameter
(internal unwind section)
800mm ~31.5”
Max. roll weight, unwinding  150kg   ~331
Max. web speed  30m/min
