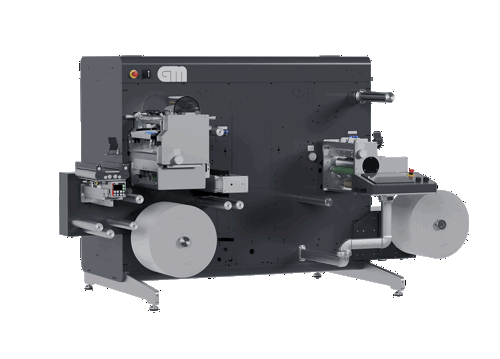

The GM Photo Coater is designed for the UV coating of photo paper with superior quality. It also provides UV coating for photo books, labels, stickers, and other roll-feed products.
The UV guarantees that professional quality photos printed on paper using silver halide technology get the optimal protection and required gloss level. UV coating ensures a brilliant appearance and enriches the colors. It prevents the colors and images from fading and provides excellent resistance against weather, UV light, abrasion, sweat, and other elements.
The machine has a compact footprint and is easy to operate. The helical gears used in the coater ensure perfect coating quality due to the minimum level of vibration. The drive train in the coater is completely servo driven offering low maintenance servo-driven tension control and good registration. The coating station uses the flexographic principle, so the actual coating thickness can be controlled very accurately saving varnish costs.
The GM Photo Coater features the newest electronics, a newly designed control panel, and a user-friendly interface. The graphical touch screen shows the machine configuration, spindle directions, and web-up. The machine can be equipped with optional modules allowing spot varnish, lamination, cold foiling, and slitting. The large 600 mm bottom rewinder offers fewer stopovers.
The machine has an internet connection for remote support and a user-friendly graphical touchscreen in the local language.

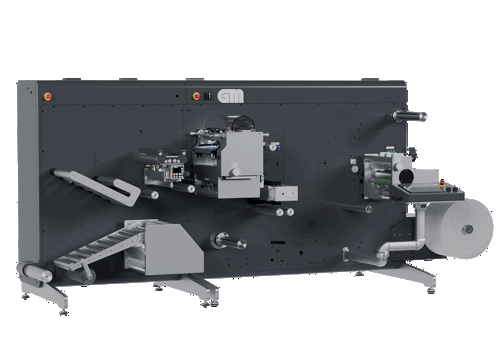

GM Photo Coater can run offline and in line with photobook manufacturing equipment and digital printers.
20 March 2020
| Specifications | Metric | Imperial |
|---|---|---|
| Web width | 50 - 350 mm | 2 - 13.8” |
| Substrate | 50 - 200 µm | 2 - 8 pt. |
| Max speed | 130 m/min | 427 ft/min |
| Unwinder | ||
| Diameter max. | 700 mm | 23.6" |
| Core diameter | 76,2 or 152,4 mm | 3 or 6” |
| Rewinder | ||
| Max diameter of the top rewinder | 500 mm | 19.7" |
| Max diameter of optional bottom rewinder | 500 mm | 23.6" |
| Core diameter | 25 - 152 mm | 1 - 6” |
| Standard core diameter | 76,2 mm | 3” |
| Flexo Station | ||
| Print Cylinder size | 228 - 482,6 mm | 9 - 19” |
| Spot varnish option with digital sensor register control and slow-run | ||
| Fool flood mode or register mode, depending on configuration | ||
| Slitting Station Option | ||
| Knife type | Pneumatic Quick CrushKnives, Quick Set Shear Knives, Razor Knives (inserts), or Autoknives | |
| Minimum distance Crush/ Razor | 12,7mm | 0.5” |
| Minimum distance Quick Set Shear | 14 mm | 0.6” |
| Power/Air | 3x400V+N+PE, 32A, 6 bar | |
| Dimensions (WxDxH) | 2,4 x 1,4 x 1,7 m | 7.8 x 4.6 x 5.6 ft |
