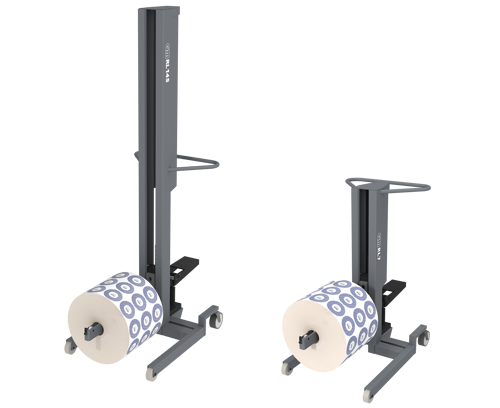

The RL-line includes three models with different lifting heights and manual or automatic lifting. The RL roll lifter unit consists of a solidly welded frame, two fixed front wheels, and two removable rear wheels. The legs of the lifter fit under a standard EU pallet.
Both hydraulic and electric models are available:
The RL 7/14 is designed with a foot-operated hydraulic pump and gear train for easy lifting and lowering. In the RL14EL this is done by an electric actuator and controlled by a wired controller.

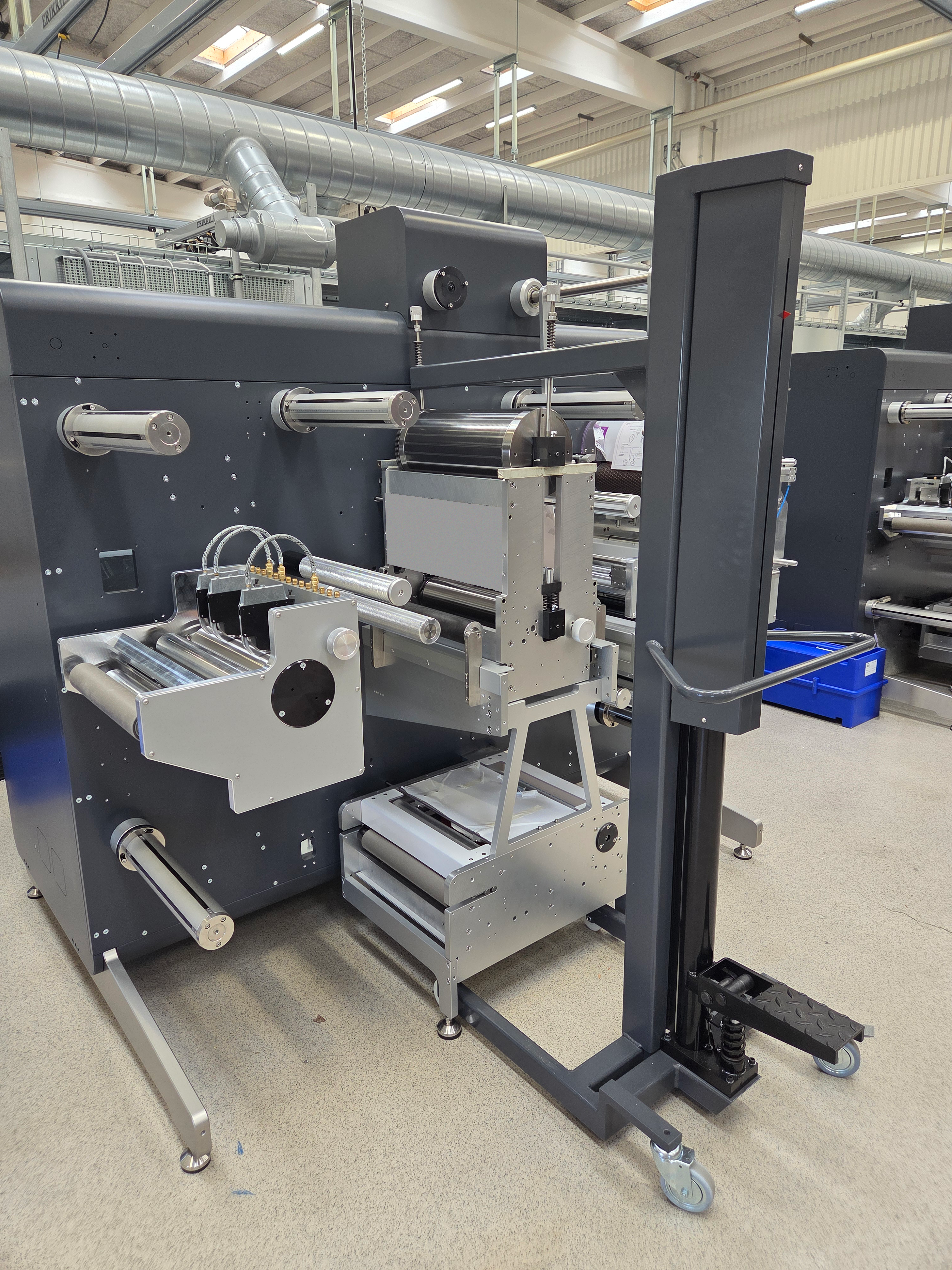

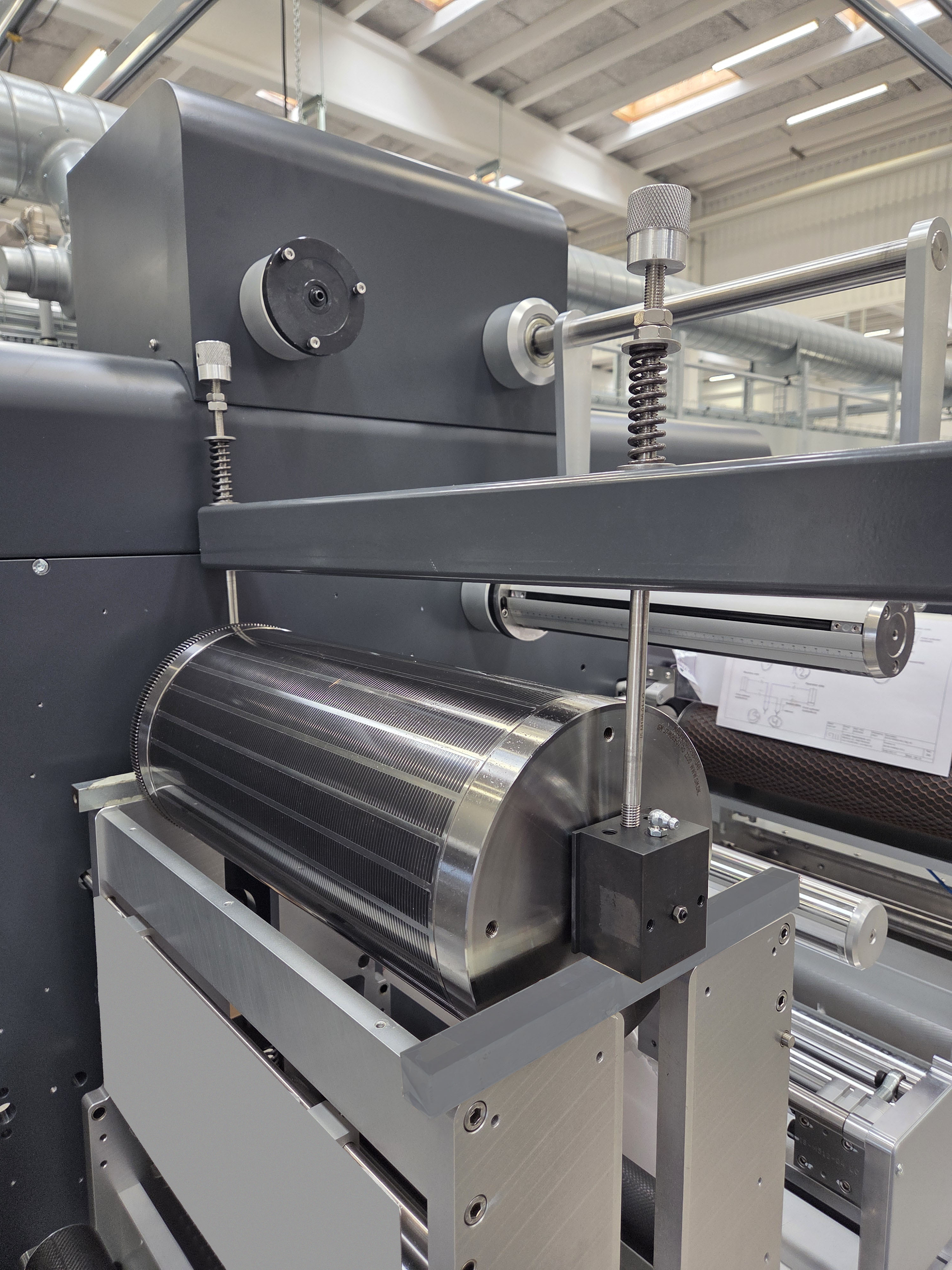

The support shaft is fitted with ball bearings on the top side and can easily be replaced by a yoke which is applied when the roll including the shaft is to be lifted from a machine.
Lifting yoke for the handling of rolls of max. width
700 mm (27.6”).
Support shaft of 610 mm (24”) for rolls of max.
width of 610 mm
Extra battery (only RL14EL).
| Specifications | Metric | Imperial |
|---|---|---|
| RL7 | ||
| Lifting height | 100 - 715 mm | 3.9 - 28” |
| Max roll weight | 350 kg | 770 Ibs |
| Lifting system | Manual hydraulic foot pump | |
| Weight | 78 kg | 172 Ibs |

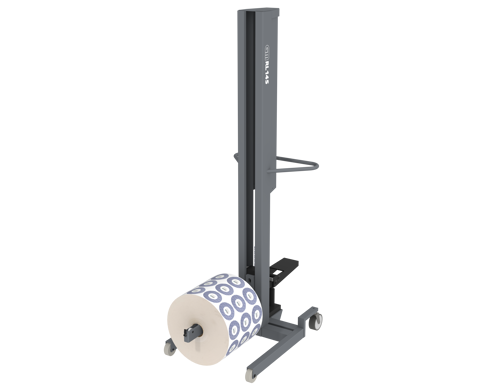

| RL14 | ||
| Lifting height | 100 - 1500 mm | 3.9 - 59” |
| Max roll weight | 350 kg | 770 Ibs |
| Lifting system | Manual hydraulic foot pump | |
| Weight | 110 kg | 242 Ibs |
| RL14EL | ||
| Lifting height | 1415 mm | 55” |
| Max roll weight | 160 kg | 352 Ibs |
| Lifting system | Electric | |
| Weight | 80 kg | 176 Ibs |
