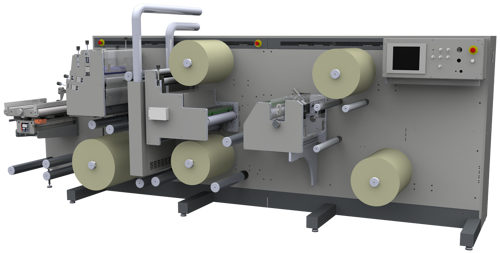

UC500+ Coater with lamination & super gloss

  • Touch display setting of label quantity per sheet and other job information
  • Automatic register control
  • Dual 76mm rewind with Ø500mm capacity
  • Optional hot-air for water-based varnish
  • Pneumatic 76mm spindles
  • Ultrasonic web guide
  • UV flexo varnish

Characteristics

The UCP500 coating line is a universal coating/priming unit. It comes as an inline or offline version. Inline versions support all major digital presses.

The machine can be equipped with partial varnish, lamination, super gloss and other coating options. For priming synthetics, a Corona system is needed. Water based coatings will need a closed chamber option in most cases.

The UC500 can be delivered in a “full duplex version” that applies coatings to both sides of the web. The standard 4x1,4 meters UCP500 has a more compact sister: the ultra-compact UC500. This light version measures only 2x1,4 meters.

GM delivers the UC500 in both left-right and right-left run direction. Coatings are applied with a flexographic station and can be both UV and water based.



Advantages
  • UV flexo varnish
  • Ultrasonic web guide
  • Pneumatic 76mm spindles
  • Dual 76mm rewind with Ø500mm capacity
  • Optional hot-air for aqua varnish
  • Touch display setting of label quantity per sheet and other job information
  • Automatic register control adjusts for changes in the web speed (cut to mark)



Optional equipment
  • Length slitting knives (rotary top and bottom cutter) max. 6 knives. (Also for retrofitting)
  • Separate unwind section, max. roll diameter 1000mm (~39.4”)
  • Hot-air module for Aqua varnishJogger table for sling stacking
  • Spot varnish
  • Corona treater
  • Back scoring / Perforation

Technical Specifications

Specifications Metric Imperial
Web width 100 - 500 mm 4 - 20"
Substrate  60 - 200 µm
Rewinder
Diameter max. Ø500 mm 19.7"
Core diameter 76,2 or 152,4 mm 3 or 6"
Unwinder
Diameter max. Ø700 mm 27.6"
Core diameter 76,2 or 152,4 mm 3 or 6"
Flexo Station
Orint cylinder size 228,6 - 482,6 mm 9 - 19"
Curing  GEW UV 6 kW
Spot varnish option (digital sensor register control)
Hot air drying system 11 kW
Power / Air  3x400V+N+PE, 16A, 6 bar
Dimensions (WxDxH) 3,8 x 1,5 x 1,7 m
Exhaust  Ø100 mm, 800 m³/h. Outside
