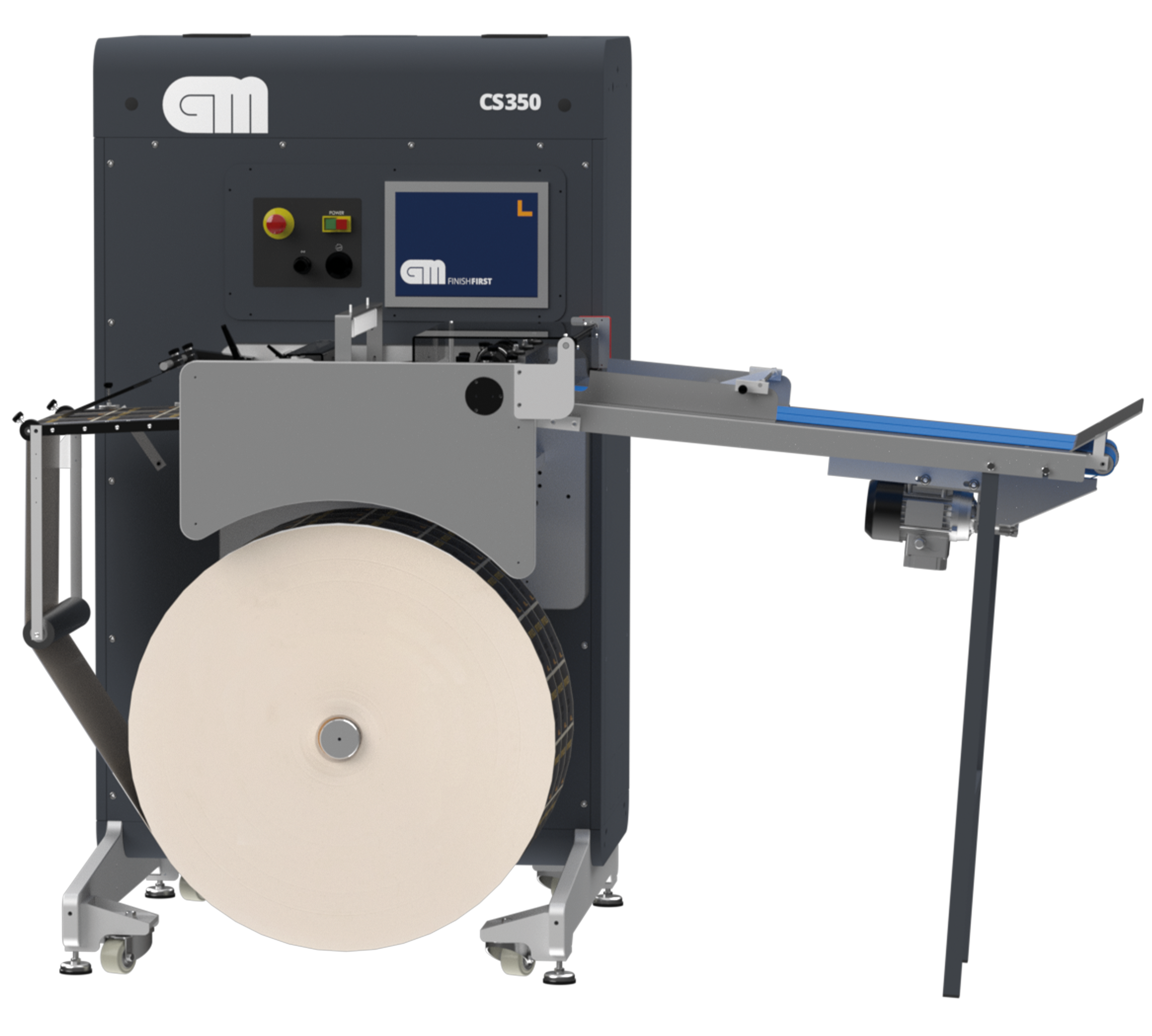

The CS350/550 are GM’s latest high-speed guillotine sheeters providing cutting with a high accuracy of ± 0,15 mm.
The machines cut the web into sheets at a speed of up to 30 m/min or up to 14,000 sheets/hour depending on the selected cutting length.
The CS350/550 offers a web width of 350/550 mm and operates with most digital label presses on the market. They are built for both in-line and offline operations, and they are compatible with the entire line of GM converters.
The sheeters are developed to cut not only labels but other heavy materials such as carton boxes for the pharmaceuticals and cosmetics sector, folding cartons used for packaging in the tobacco industry and display blisters.
The sheeters can be additionally equipped with optional rotating shear knives for length slitting or side cutting, as well as wheels, allowing the machine to be easily moved when needed.
Intuitive setting of operating parameters on the touch display and the machines cut according to a very large variety of criteria and contain many time-saving options.
![]() |
Multiple use Cut not only labels but other heavy materials as carton boxes for the pharmaceuticals and cosmetics sector, folding cartons used for packaging in the tobacco industry and display blisters. |
|
![]() |
High speed sheeter These high-speed sheeters cut sheets with a speed of up to 30 m/minute or up to 14,000 sheets/hour. |
03 January 2022
18 October 2022
Specifications | Metric | Imperial |
---|---|---|
Max. web width | 350/ 550 mm | 13.8/ 21.7” |
Min. web width | 30 mm | 1.18” |
Max. sheet length | 10 m | 33 ft |
Min. sheet length | 10 mm | 0.4” |
Max. web speed | 30 m/min | 98 ft/min |
Max. speed in sheets | 14 000 sheets/ hour | |
Max. unwind diameter (internal) |
800 mm | 31.5” |
Core diameter | 76,2 or 152,4 mm | 3 or 6” |
Max. roll weight, unwinding | 150 kg | 331 lb |
Power/ Air | 200 - 240V+N+PE, 13A, 6 bar | |
Dimensions | ||
W x D x H CS350 | 2,0 x 1,2 x 1,75 m | 6.6 x 3.9 x 5.7 ft |
W x D x H CS550 | 2,0 x 1,4 x 1,75 m | 6.6 x 4.6 x 5.7 ft |
