DC330Mini - smart compact finishing and die cutting

  • Fastest ROI in the market
  • High performance, precision cutting and ultrashort web path
  • The fastest small footprint machine in the market
  • "Swiss Army knife" converter
  • Works inline with any digital press
  • Works inline with GM hotfoil and screen embellishment units
  • Train an operator in just one day
  • Online support and remote diagnostics
  • High performance - up to 80 m/min semi-rotary (optional)

Characteristics

Smart finishing

DC330Mini provides full flexibility in finishing and die-cutting, you can even print an extra color – the sky really is the limit with this powerful tool.

All-in-one compact solution
DC330Mini is developed in a small footprint to minimize waste and maximize productivity.

DC330Mini provides UV flexo varnish, lamination, cold-foil, die cutting, slit, and dual rewind on one single compact platform.

The drive train in the DC330Mini is completely servo driven offering low maintenance servo-driven tension control and good registration.

Very user-friendly
To optimize production the user-friendly touch screen is designed to give a graphical overview of e.g. machine configuration, spindle directions, web path, and active/non-active stage.

Accelerate your ambition with the DC330Mini backed up by multi-level support and great financing options from GM!

Optimize inline and offline

With an in-sync unit it is easy to switch between inline and offline mode. The buffer synchronizes the speed between digital press and finisher, and allows operator time to change the roll.

UV Flexo varnish station

Optional registration allows a higher level of embellishment with spot varnish and cold foil. Supports sleeves.

Chilldrum for flexibles

A new chilling solution that eliminates curling and melting issues when UV curring thin foil substrates. Maximises the variety of substrates applicable.

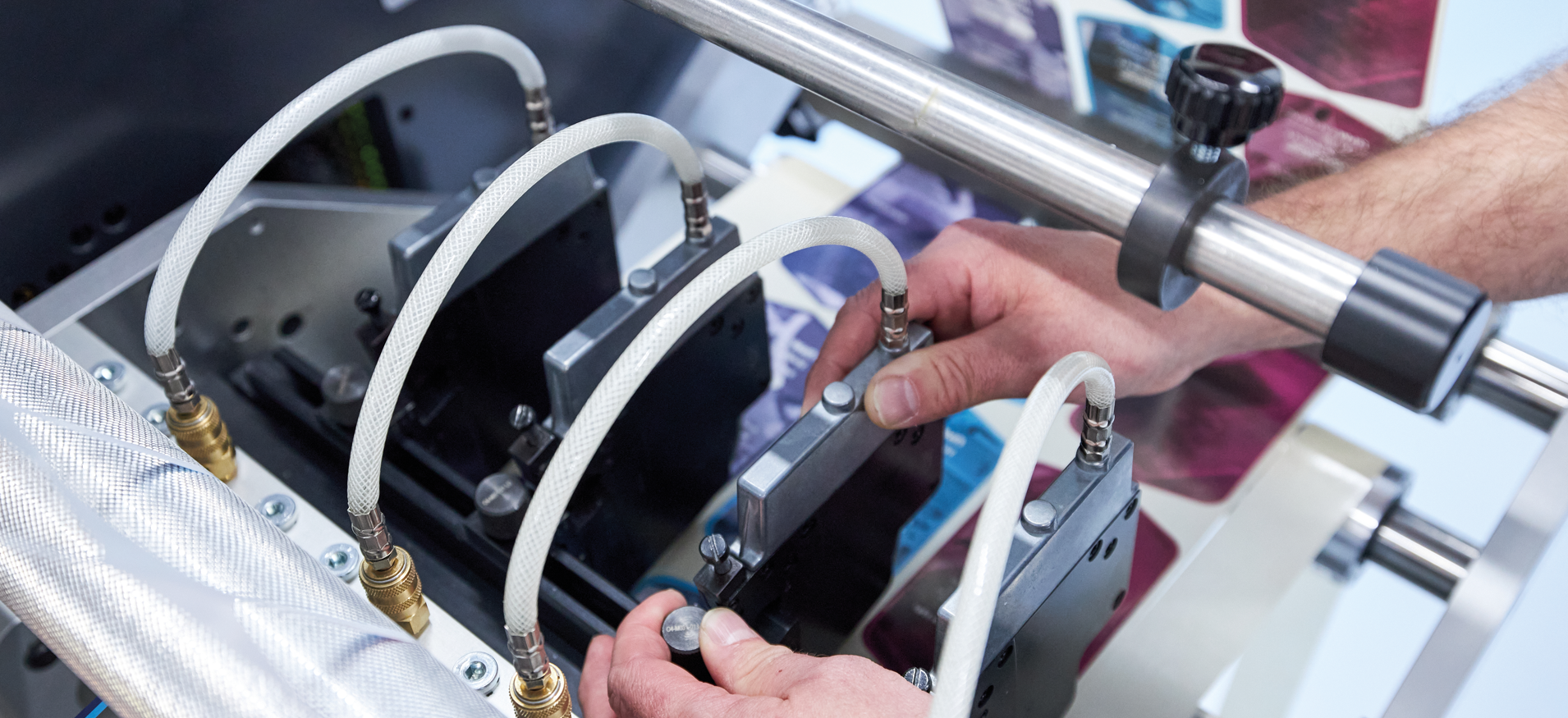

Ultra-quick set knives

The Quick CrushKnives system, allows fast and precise setting of each crush knife – even while running.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 50 - 350 mm 2 - 13.8”
Substrate  50 - 200 µm 2 - 7.9 pt.
Die Station
Semi-rotary speed 45 m/min 148 ft/min
Full-rotary speed  130 m/min 426 ft/min
Die plate size (repeat) 50 - 558,8 mm 2 - 22”
Rewinder/Unwinder
Max. Internal unwind Ø500 mm 19.7”
Max. Single shaft rewind Ø400 mm  15.7”
Core diameter 76,2 or 152,4 mm  3 or 6”
Slitting Station
Knife Type Pneumatic crush, SmartCrush
Minimum distance crush 12,7 mm 0.5
Max number of knives 14 pcs
  Minimum distance SmartCrush 30 mm 0.5
  Max number of SmartCrush knives 11 pcs
Power/Air  3x400V+N+PE, 16A, 6 bar
Dimensions (WxDxH) 1,6 x 1,6 x 1,7 m
