Hotfoil & screenprinters
Enhance your labels with the finishing techniques of hot stamping, embossing, and screen printing.
blue brochure
Discover the unique world of labels with our GM catalogue

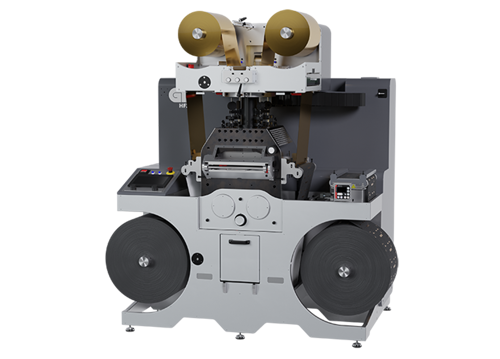

HF350 offers limitless options for hot stamping and embossing.

  • Features a servo-register system for printed marks or an optional label gap sensor
  • Equipped with a BST ultrasonic web guide
  • Facilitates easy loading of plate and counter plate, even in a hot state
  • Intuitive graphical touch screen includes label counter, meter counter, alarms, and additional features

Characteristics

Impress Your Customers

To captivate your consumers, the ideal mix of quality and aesthetics is essential, and the HF350 flatbed hot stamp unit is designed to achieve just that. Elevate your brand's image and make a lasting impression with labels that stand out in both appearance and quality. Here's how the HF350 can transform your labeling process:

Cutting-Edge Technology

The HF350 is a cutting-edge unit that enhances your labels with a distinctive and impressive appearance. It’s designed to bring a touch of sophistication and professionalism to your products, ensuring that every label reflects the high standards of your brand. Whether you are producing labels for premium wines, luxury cosmetics, or gourmet foods, the HF350 ensures they will be noticed.

Versatile Label Printing

This versatile machine offers both hot foil and cold embossing, fulfilling all your label printing requirements. Hot foiling adds a layer of elegance and prestige with metallic effects like gold and silver, while cold embossing provides a tactile dimension, making your labels not only visually appealing but also delightful to touch. These combined features help your products stand out on crowded shelves.

Flexible Operations

The HF350 operates either offline or in tandem with other GM converting machines, providing flexibility and efficiency in your production line. Whether you need a standalone unit for smaller batches or an integrated solution for high-volume production, the HF350 adapts to your needs.

Endless Possibilities

With the HF350, you have endless possibilities at your fingertips. The machine supports a wide range of materials and designs, allowing you to experiment with different looks and feels. From intricate patterns and detailed graphics to bold metallic accents, the HF350 helps you bring your most creative ideas to life.

Invest in Excellence

Investing in the HF350 means investing in the future of your brand. By choosing this advanced hot stamp unit, you are committing to delivering the highest quality labels that meet the demands of today’s discerning consumers.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 50 - 350 mm 2.0 - 13.8”
Substrate 50 - 200 µm 2.0 - 8 pt.
Hot Foil & Embossing
Speed Up to 70 m/min Up to 230 ft/min
Stamp plate size 304,8 x 330 mm 12 x 13”
Total thickness of the plate and counter plate  5 - 15 mm  0.2 x 0.6”
Unwinder
Diameter max. 600 mm 23.6”
Core diameter 76,2 or 152,4 mm 3 or 6”
Rewinder
Diameter max. 600 mm 23.6”
Core diameter 76,2 or 152,4 mm  3 or 6”
Dimensions
 W x D x H 1,75 x 1,25 x 2,15 m 5.74 x 4.1 x 7.05 ft
