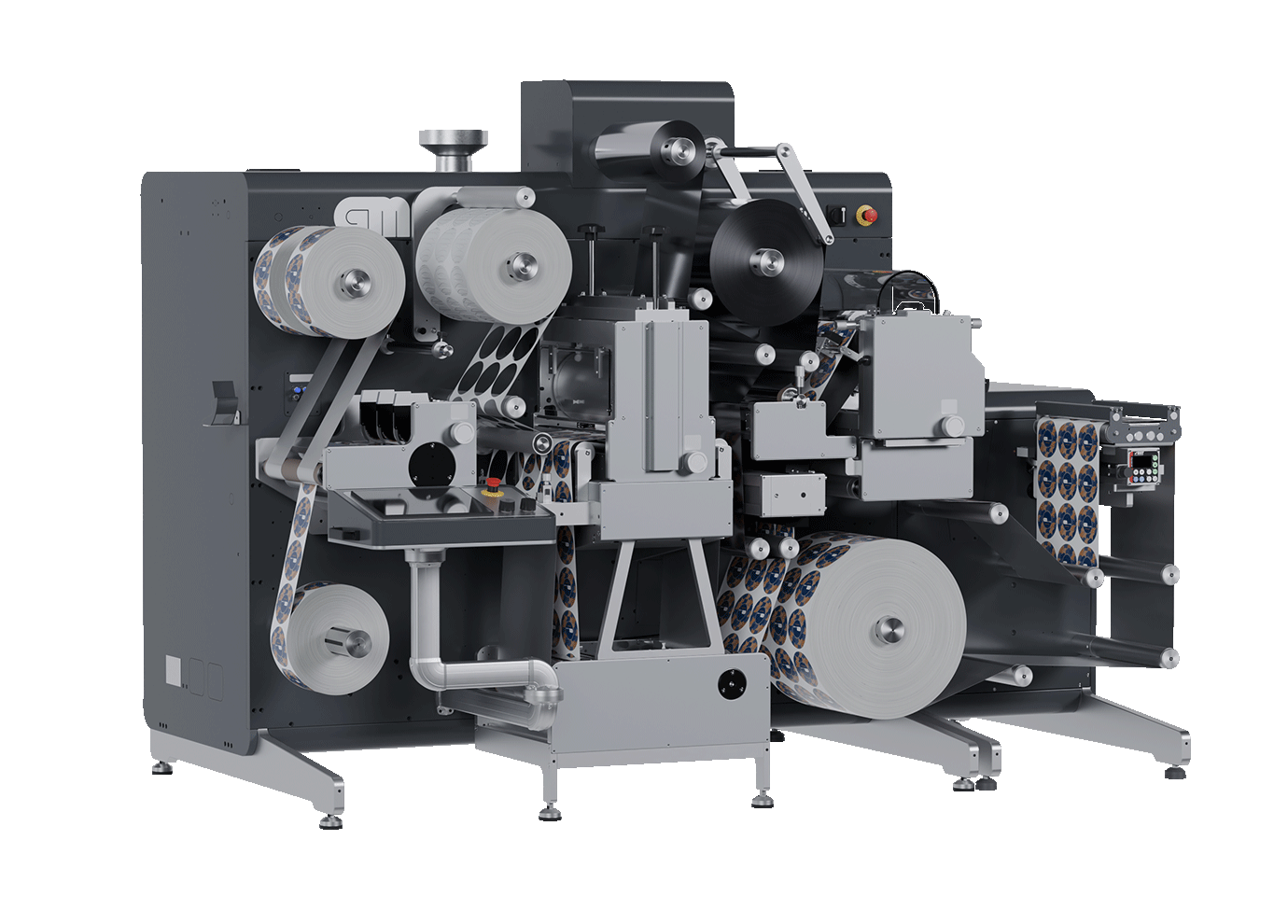

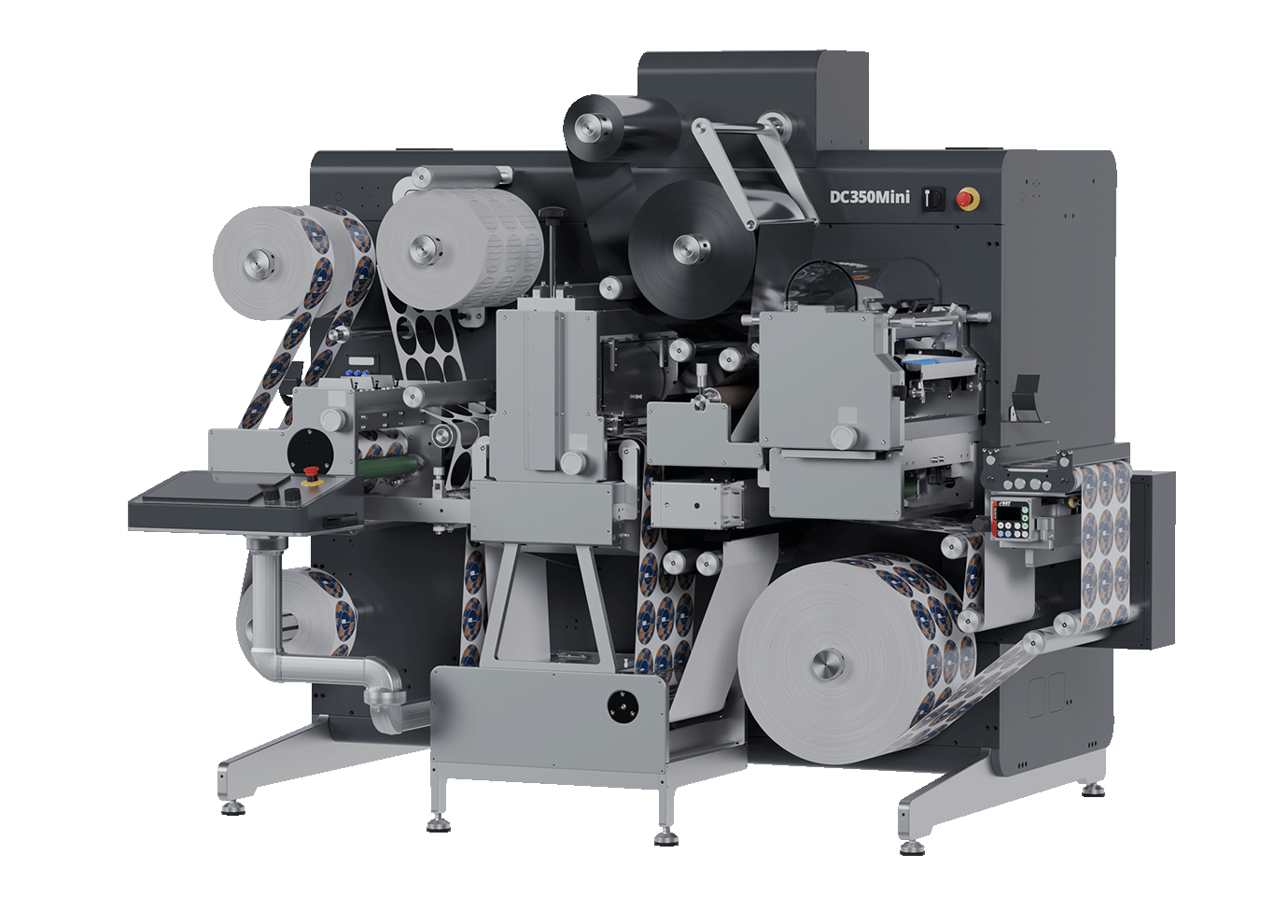

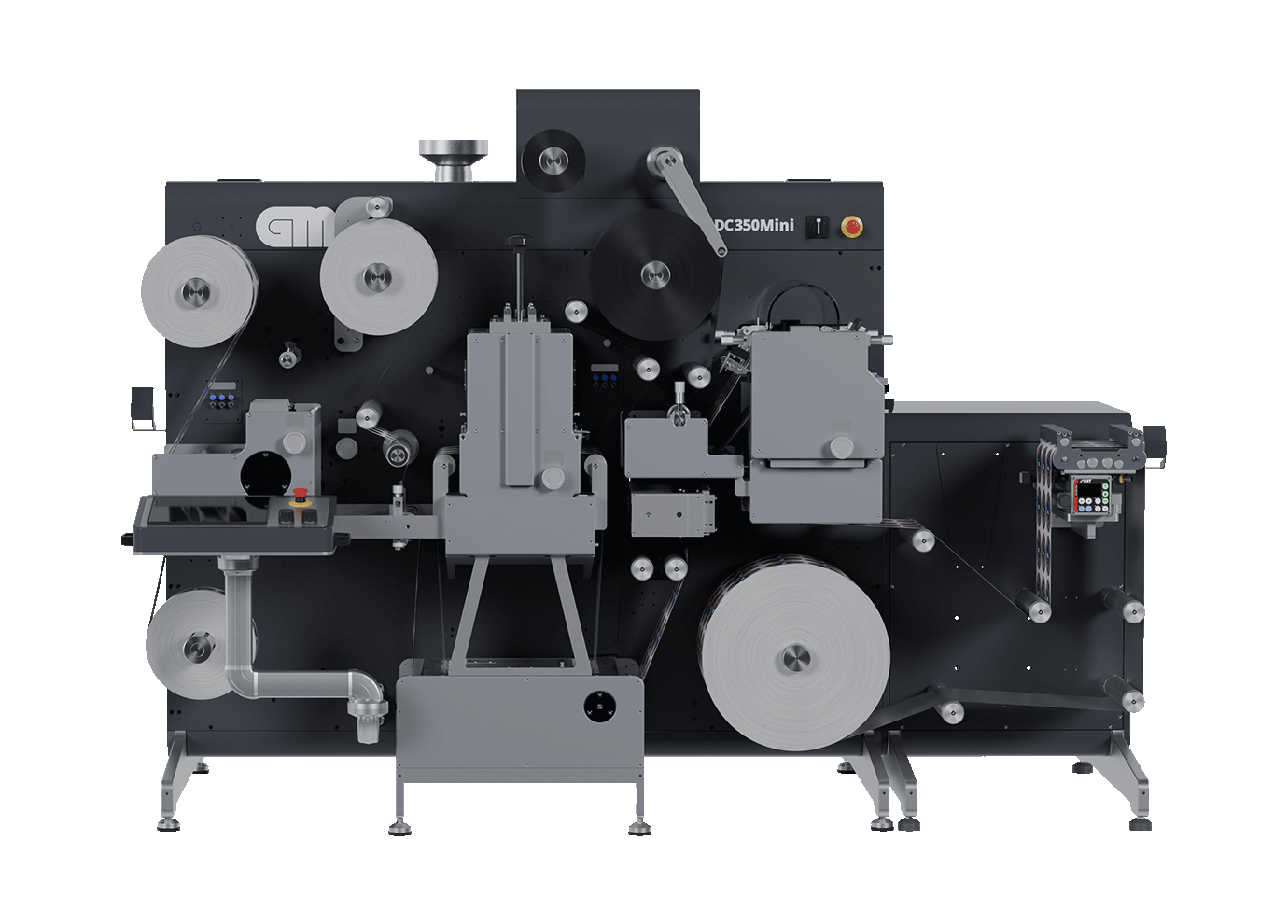

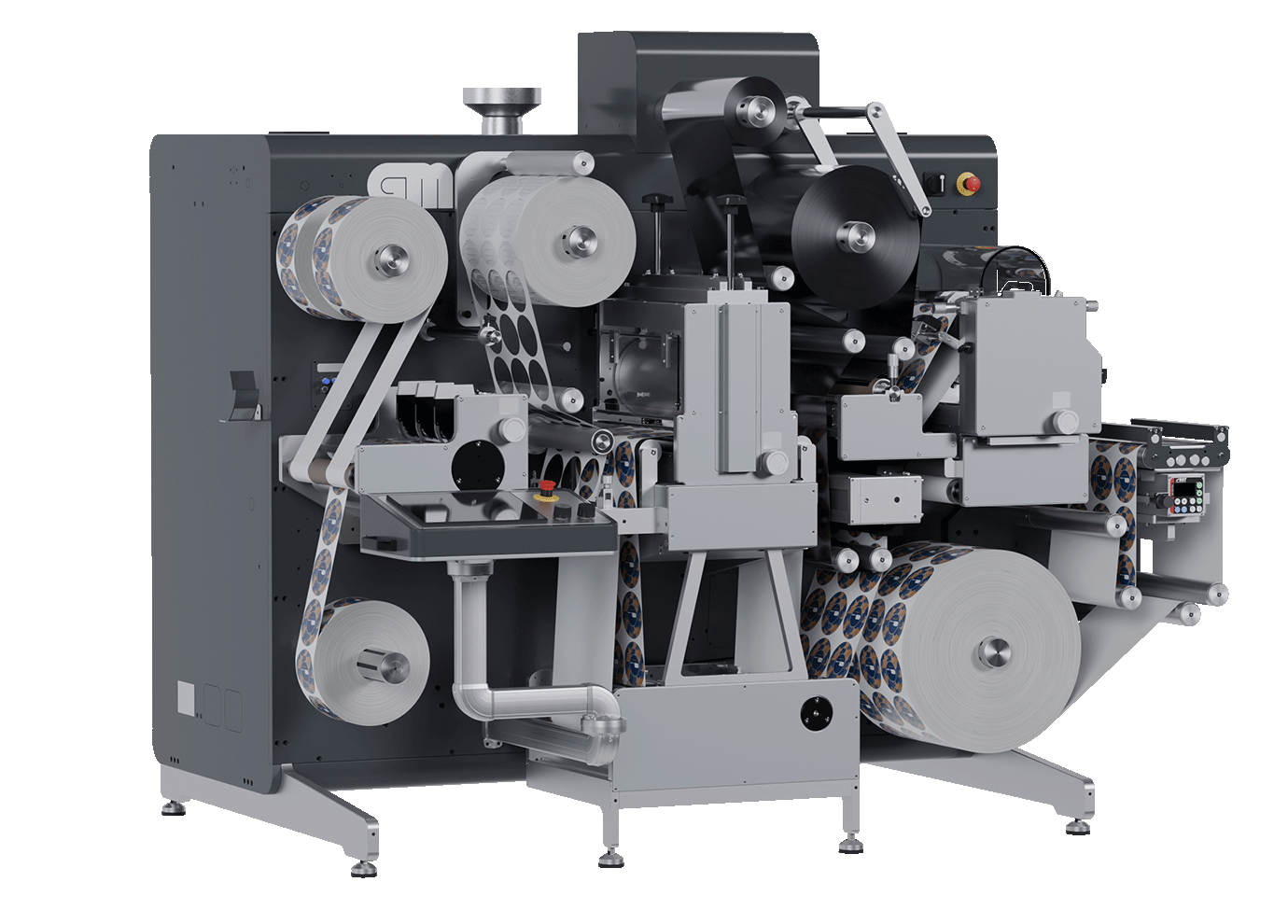

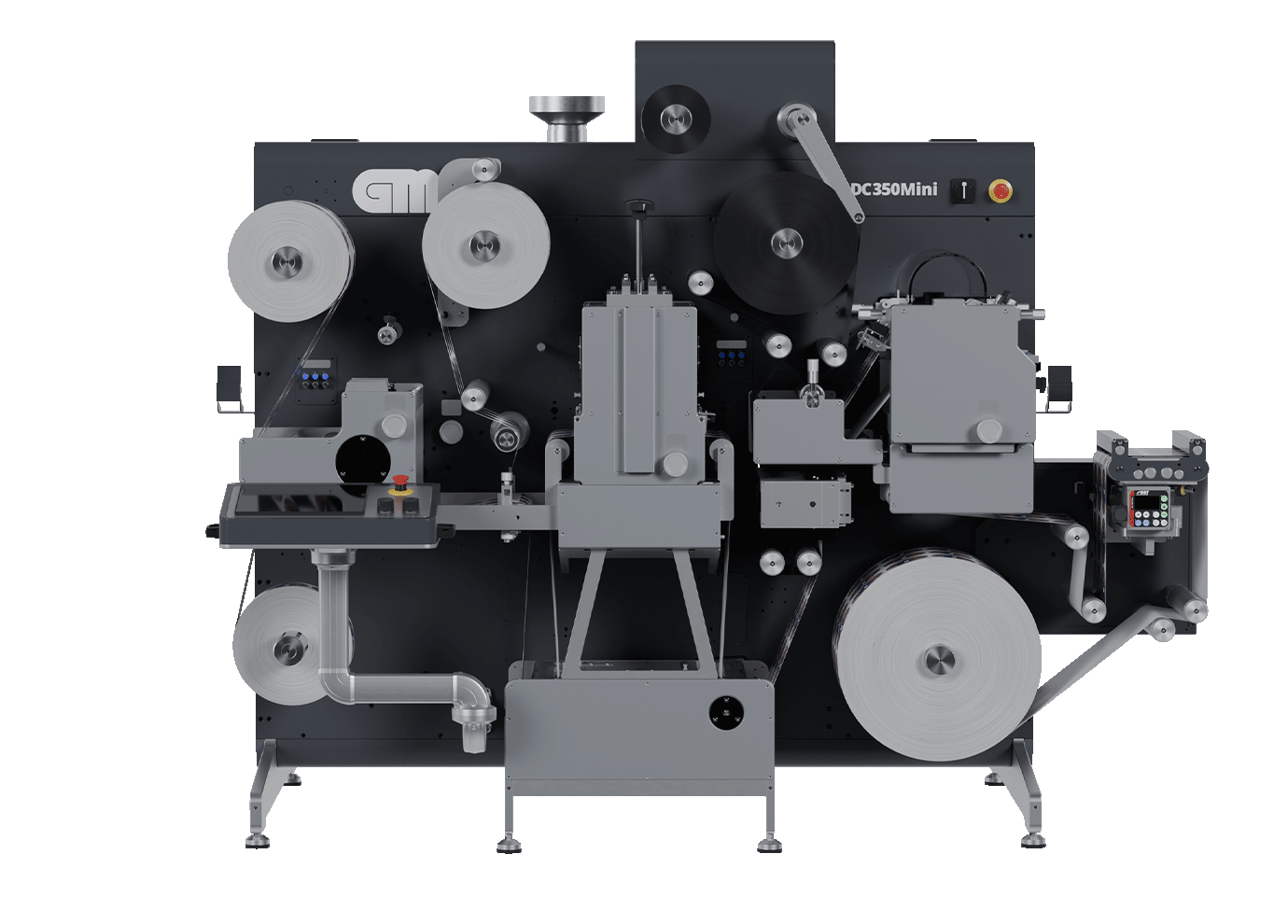

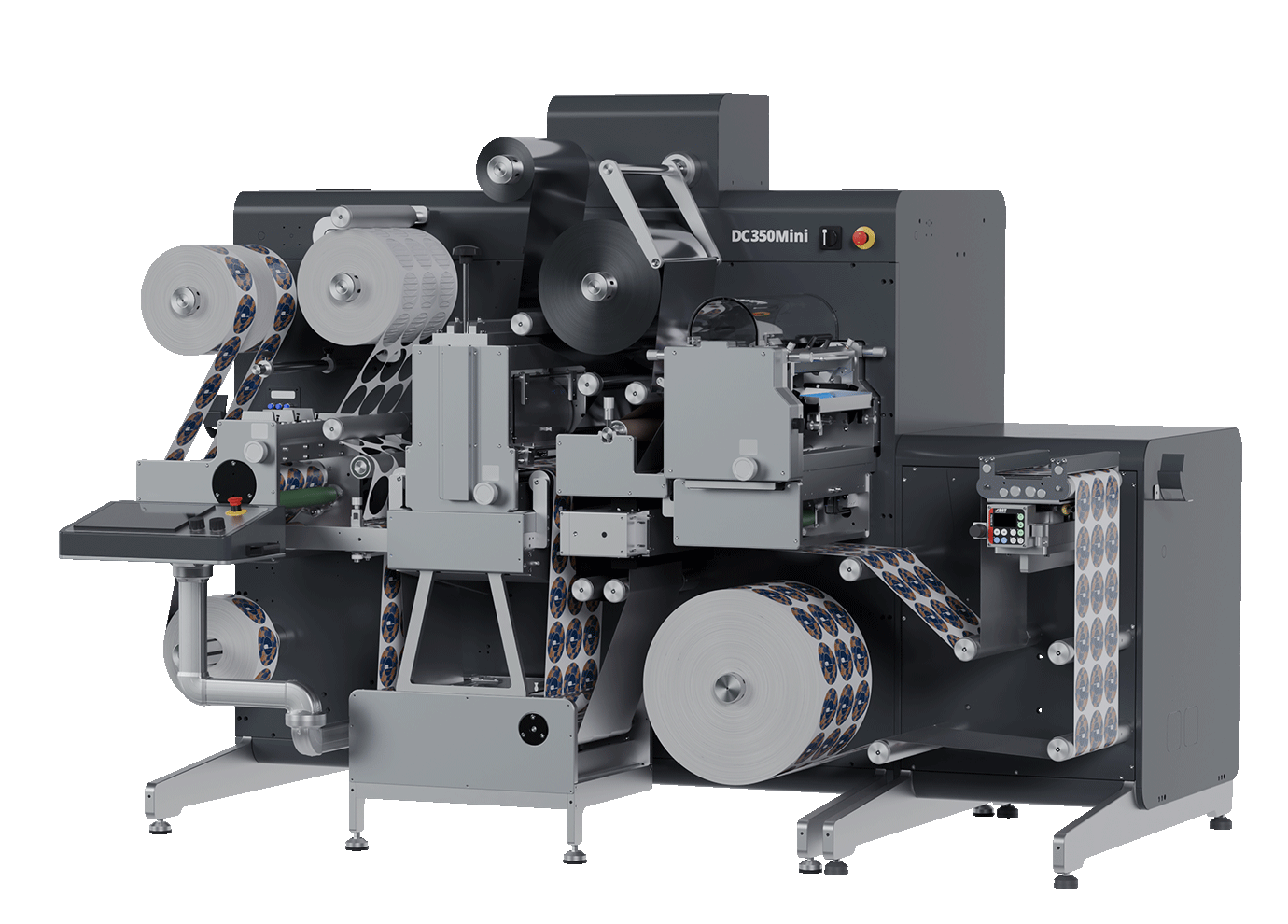

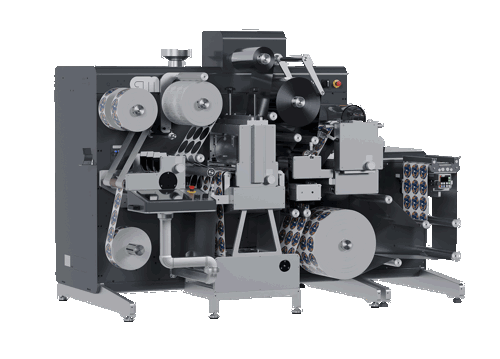

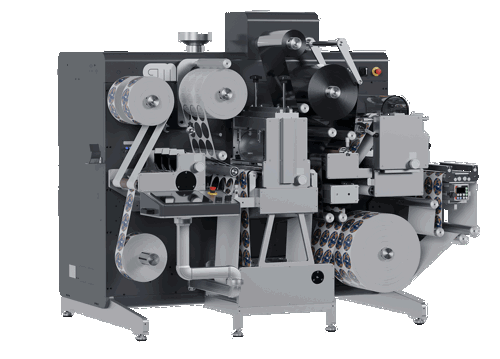

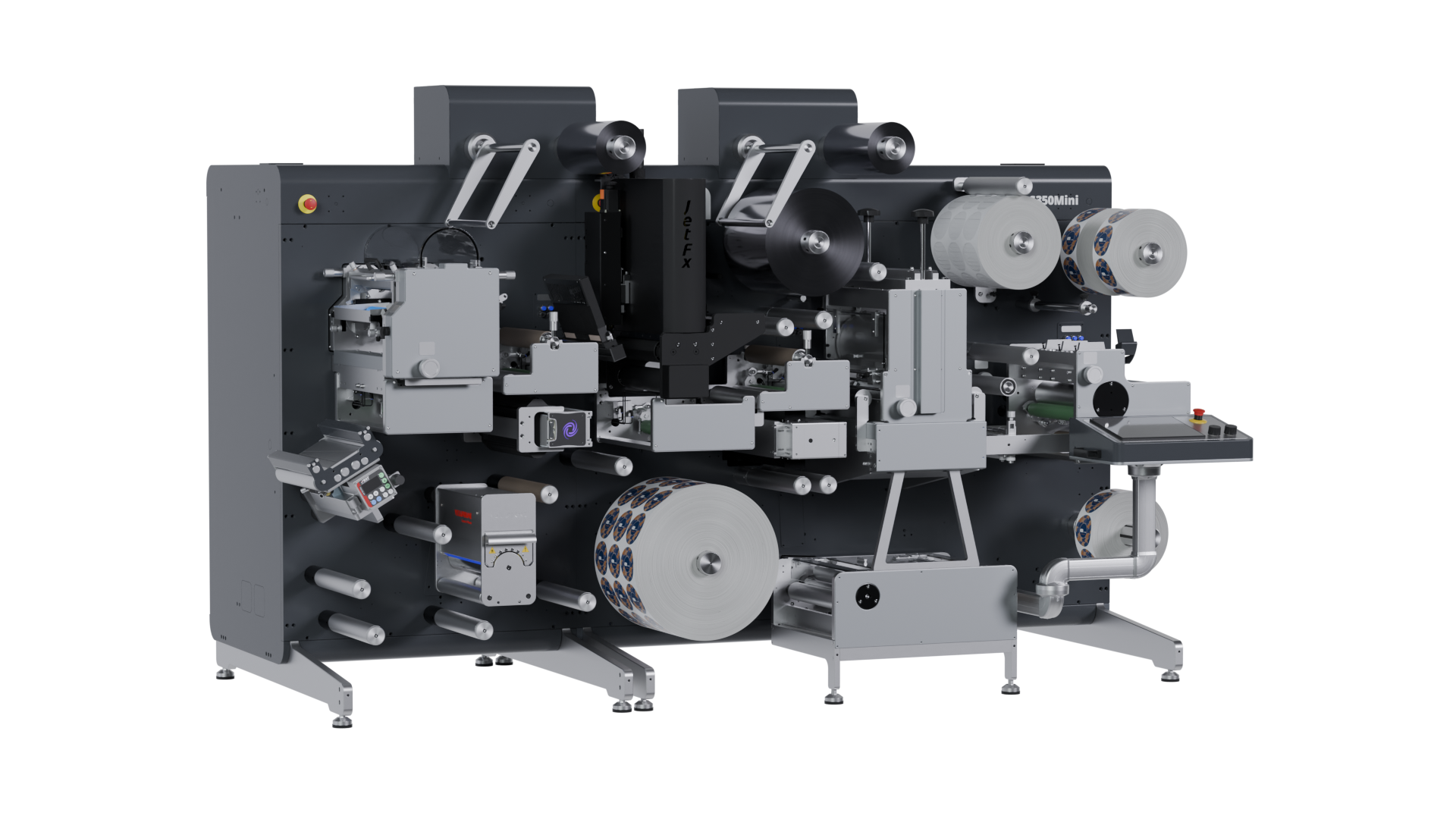

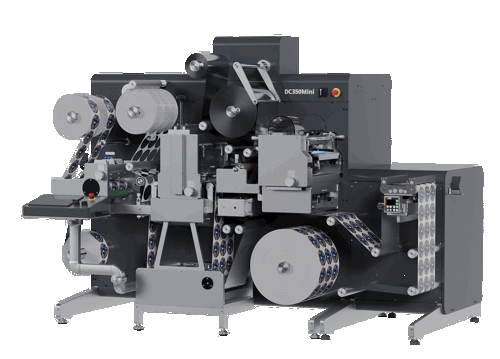

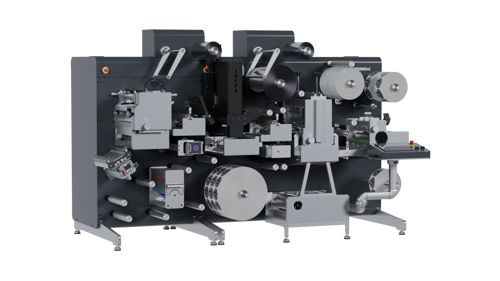

The DC350Mini excels in versatile finishing and die-cutting operations, offering the capability to even incorporate additional color printing—an expansive feature set that pushes boundaries.
Designed for minimal waste and maximum productivity, the DC350Mini integrates UV flexo varnish, lamination, cold-foil application, die cutting, slitting, and dual rewinding on a single, compact platform. It seamlessly interfaces with GM's hot foil and screen embellishment units, ensuring comprehensive functionality in a condensed form factor.
Featuring a fully servo-driven drive train, the DC350Mini provides precise tension control and excellent registration, reducing maintenance requirements and enhancing operational reliability.
Enhancing production efficiency, the intuitive touchscreen interface offers graphical insights into machine configuration, spindle directions, web path, and operational status, ensuring streamlined workflows.
|
Efficient for inline and offline operations The synchronized unit facilitates swift switching between these modes, ensuring the digital press and finisher operate in perfect harmony. A buffering mechanism maintains synchronized speeds, granting operators ample time to replace rolls efficiently. |
|
|
Chilldrum designed for flexible materials Chilldrum for flexible materials introduces an innovative cooling solution that resolves curling and melting problems during UV curing of thin foil substrates, significantly expanding the range of applicable materials. |
|
|
Efficient knife adjustments The Quick CrushKnives system facilitates rapid and precise setting of each crush knife, ensuring minimal downtime and maximum operational efficiency, even during production. |
|
24 April 2023
16 November 2022
08 November 2022
09 August 2022
04 June 2020
| Specifications | Metric | Imperial |
|---|---|---|
| Web width | 50 - 350 mm | 2 - 13.8” |
| Substrate thickness | 50 - 200 µm | 2 - 8 pt. |
| Die Station | ||
| Max semi-rotary speed | 80 m/min | 262 ft/min |
| Max full-rotary speed | 130 m/min | 426 ft/min |
| Die plate size (repeat) | 50 - 558,8 mm | 2 - 22” |
| Unwinder | ||
| Diameter max. | 700 mm (800 mm optional) | 27.6” (31.5”) |
| Core diameter | 76,2 or 152,4 mm | 3” or 6” |
| Rewinder | ||
| Diameter max. | 500 mm (700 mm optional) | 19.7” (27.6”) |
| Standard core diameter | 76,2 mm | 3” |
| Waste matrix rewinder diameter | Up to 800 mm on request | Up to 31.5” on request |
| Flexo Station | ||
| Print cylinder size | 228 - 482,5 mm | 9 - 19” |
| Spot varnish option with digital sensor register control and slow-run | ||
| Slitting Station | ||
| Knife type | Pneumatic crush, Quick CrushKnives, shear or razor | |
| Minimum distance crush/ razor | 12,7 mm | 0.5” |
| Minimum distance Quick CrushKnives | 27 mm | 1.1” |
| Minimum distance shear | 13 mm | 0.55” |
| Dimensions | ||
| W x D x H | 2,67 x 1,87 x 3,34 m | 8.76 x 6.13 x 10.96 ft |
