Laser diecutters
Tool free laser die cutting of labels and other materials
blue brochure
Get an overview of our compact machines encompassing complete automated converting lines

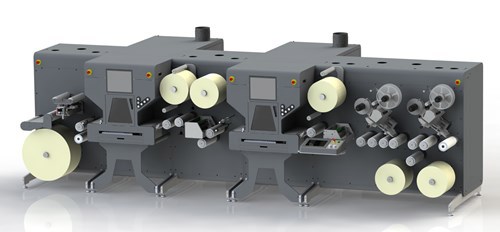

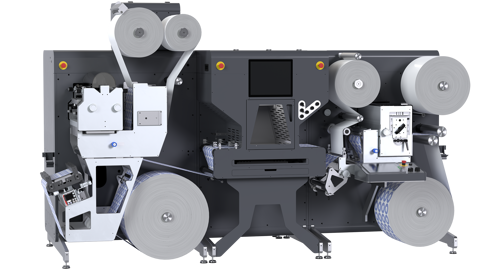

LC350 - economic and tool-free digital laser finishing

  • Excellent choice for any digital label press
  • Fully digital mirror system for superior laser cut quality
  • High-performance LUXINAR sealed lasers
  • Precise register and cut depth control
  • Zero changeover time - job change on the fly
  • No die cut plate cost
  • Online support and remote diagnostics
  • Industry 4.0 ready

Characteristics

A a compact, economical and fully digital laser finisher and an excellent choice for a digital label press



Quick delivery
With near to zero setup time for existing and new jobs, this laser finisher counters the challenges of smaller runs and challenging lead times. An investment in the LC350 will give you continuous production, increase efficiency and productivity and enable day-to-day delivery of labels.

Cost saving
Save the cost of buying conventional die cut plates, and spare the time setting up new jobs. This cost-efficient laser die cut solution will increase the flexibility in your production facility.

LC350 supports multiple laser processes and the laser beam will kiss-cut, slit, perforate and ablate most materials used in the label industry.

The standard configuration of LC350 has laser die cutting, varnish, slitting and dual rewind, and works based on a fully digital position system. This solution offers excellent register (X & Y) and cut-depth control, which gives you greater flexibility in the design of labels and an increase in the precision and quality of label edges.

The laser module of LC350 is designed to fit into any GM converting line, such as DC350Flex+, with minor electrical and mechanical modifications.



Flexibility and automation

The advantages of laser die cutting are flexibility, precision, repeatability, speed, cost-effectiveness, great quality, versatility and automation possibilities. AutoKnives make production 100% tool-free.

TOOL FREE / zero setup time

Eliminates downtime for setups of mechanical dies, while increasing your design possibilities to more complex and intricate arrangements of high accuracy.

Day-to-day delivery

You can quickly upload a job to the LC350 and begin cutting. Jobs can continuously be readjusted for quick runs and also be saved and easily recalled.

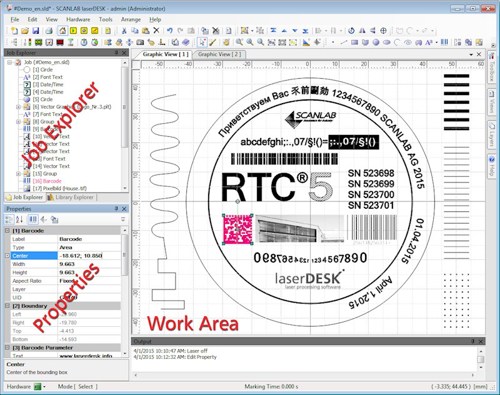

Job change while running

You don’t need to stop the machine to change jobs. The software will do it for you automatically. Save time, reduce waste and eliminate vast tooling expenses.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 50 – 350mm 2 – 13.8"
Substrate  20 – 200 µm 0.8 – 8 pt.

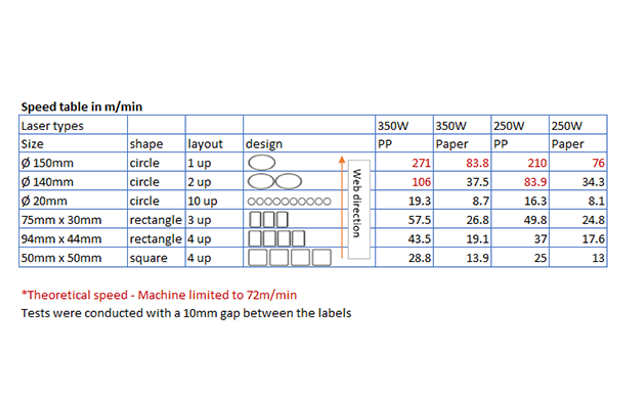

Speed  Up to 72 m/min (236 ft/min) depending on laser power and cut pattern
Laser Die
Power  175W, 250W or 350W
Laser Type Sealed, single head pulsed CO2
Laser Spot Size 350μm
Unwinder
Diameter max. 700 mm 27.6”
Core diameter 76.2 or 152.4 mm 3 or 6"
Rewinder
Diameter max. 600 mm 23.6"
Core diameter 25.4 – 152.4 mm – 6"
Semi-Rotary Flexo
Print cylinder size 254 – 711 mm 10 – 28"
Spot varnish option (digital sensor register control)
Slitting Station
Knife Type Pneumatic crush, shear, razor or AutoKnives slitting
Minimum distance crush 12.7 mm 0.5”
Minimum distance shear  10 mm 0.4"
Minimum distance shear (AutoKnives slitting) 15.5 mm 0.61”
Power/Air  3x400V+N+PE, 32A, 6 bar
Dimensions (WxDxH) 3.5 x 2.9 x 2.2 m 11.6 x 9.4 x 7.1 ft
Exhaust UV Ø125 mm, 800 m³/h, external.
Exhaust LASER Ø160 mm, 1600 m³/h, external.
