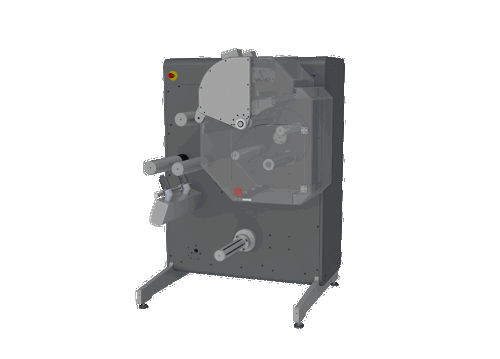

Semi AutoTurret for Non-stop Rewinding

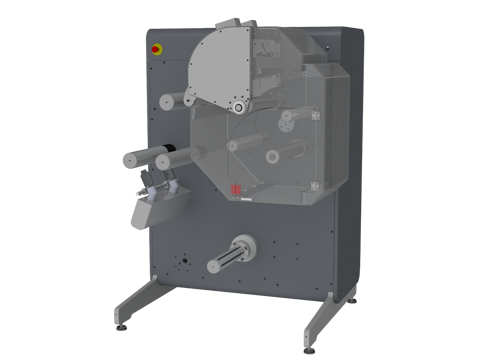

Introducing our AutoTurret for seamless, uninterrupted production. Experience continuous operation with precision control, simplifying your workflow effortlessly.

Characteristics

The Semi AutoTurret offers non-stop rewinding with automatic cutting and a dual airshaft system, ensuring continuous production and minimal downtime. Ideal for varnishing applications, it enables smooth label processing without leaving marks from the wet roller on the web. It also supports labels outside configuration and cuts cleanly between labels for a polished result.

With a rewind capacity of 385mm on the turret section and up to 700mm on the bottom shaft, it provides the flexibility and efficiency needed for demanding production environments.



Key Features

  • Non-stop operation with auto cut and dual airshaft
  • Supports labels outside and clean cuts between labels
  • Stepless electrical tension and automatic taper control for perfect roll quality
  • Fast changeover times to keep production moving
  • Manual glue and closure for operator flexibility
  • End-of-roll detection and counting function for process reliability
  • Programmable slow-down and stop when target count is reached



Upgrade your rewinding process with a solution that combines precision, flexibility, and non-stop performance.

Technical Specifications

Specifications Metric Imperial
Web width 350  mm 13.8″
Rewind 2 position turret
Max diameter on Turret 450 mm 17.5″
Max diameter on the bottom shaft 700 mm 27.5″
Standard core diameter 76,2 mm 3″
Made for  DC350Flex+
