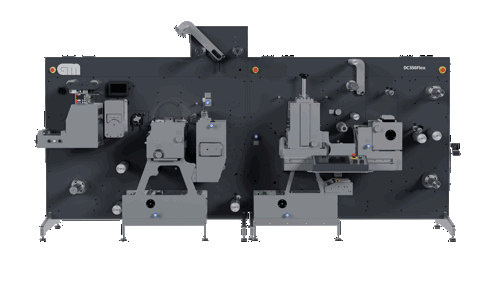

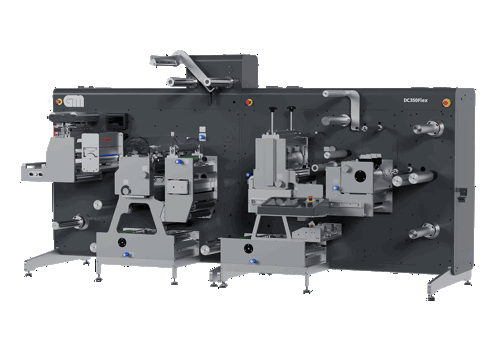

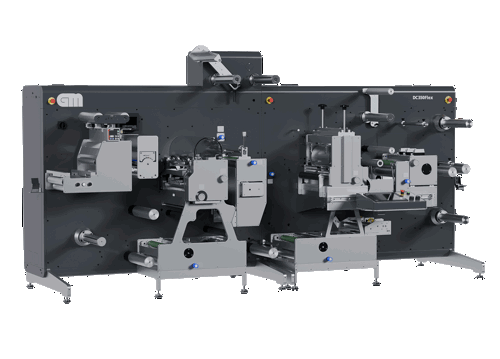

DC350Flex is built for professional label printers with the need for a complete and versatile solution in high-volume digital printing.
DC350Flex is an efficient and economical label finisher that is built with the same components as the DC350Flex+ and comes with handy options like format-free semi-rotation spot varnish, semi-rotation die-cutting, slitting, and dual rewind.
This modern platform ensures quick setup and flexibility along with an industry-leading user interface that gives the operator a graphical representation of the machine configuration and production flow.
Upgrade your production with value options like Turret rewinding, in-register lamination (MultiLayer), AutoKnives or Quick CrushKnives, FastStrip, Corona, web clean, back scoring & inline buffer.
Finally, DC350Flex is Industry 4.0 certified and prepared for in-line operation with all major digital presses.
This modular finishing platform will take your production to the next level!
|
Superior end-results A cost-efficient label finisher built for volume production of added-value labels, like multi-layer labels. |
|
|
Automated operation Label production on this flexible and modern platform delivers quick setups and minimal waste. Improve productivity with less human intervention. |
|
|
Value for customers Create more value for your customers with foiling, spot varnish, and lamination. |
|
|
CERM increases efficiency GM converters are ready for integration with all digital label presses for full inline production. The possibility of integration with the CERM system increases efficiency and automates the workflow at all levels of production. |
|
Try out our 3D product configurator and customize your finishing line according to your specific preferences and needs.
03 July 2024
17 January 2024
02 April 2020
| Specifications | Metric | Imperial |
|---|---|---|
| Web width | 50 - 350 mm | 2 - 13.8” |
| Substrate | 50 - 200 µm | 2 - 7.9 pt. |
| Die Station | ||
| Max semi-rotary speed | 80 m/min | 262 ft/min |
| Max full-rotary speed | 130 m/min | 426 ft/min |
| Die plate size (repeat) | 50 - 558,8 mm | 2 - 22” |
| Unwinder | ||
| Diameter max. | 800 mm | 31.5” |
| Core diameter | 76,2 mm | 3” |
| Rewinder | ||
| Diameter max. on dual-shaft | 700 mm | 27.5” |
| Diameter max on Turret | 450 mm | 17.5” |
| Standard core diameter | 76,2 mm | 3” |
| Semi-rotary Flexo Station - Flower Style | ||
| Print cylinder size | 228,6 - 635 mm | 9 - 25” |
| Spot varnish with digital sensor register control and slow run included | ||
| Slitting Station | ||
| Knife type | Pneumatic Quick CrushKnives, shear, or AutoKnives | |
| Minimum distance Quick Crush | 27 mm | 1.1” |
| Minimum distance shear | 14 mm | 0.55” |
| Minimum distance AutoKnives | 15,5 mm | 0.61” |
| Dimensions | ||
| W x D x H | 4,0 x 1,6 x 1,7 m | 13.1 x 5.3 x 5.7 ft |
"
Mischa Barthel
Managing Partner
Barthel Group
"
To complement its fleet of digital label printing equipment, Leapin’ Lizard Labels has teamed with a host of suppliers to round out the business. On the finishing side the company invested in a GM DC330 finishing unit.
"

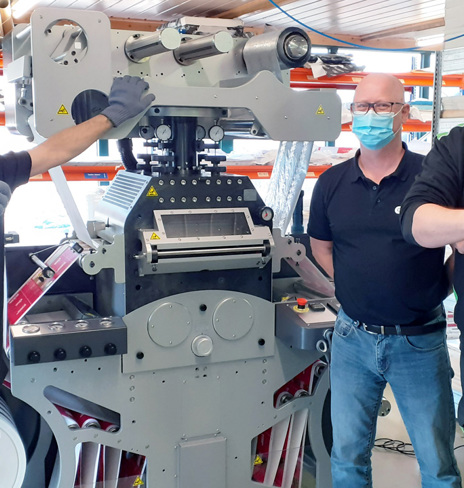

Druckerei W. Medinger GmbH's ambition is to serve high-quality wine-label customers from their new HOTFB330.
"
Vinograf Chile has recently added a new DC330Mini to its production line, helping them increase the production premium label manufacturing process for the wine market.
21 June 2021

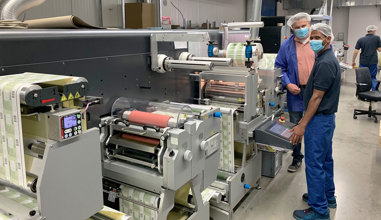

Barthel Group GmbH has invested in a GM DC350Flex compact finisher. The company needed an efficient and modular label finisher that could also deliver reliability and precision for their Essen (Germany) location.
