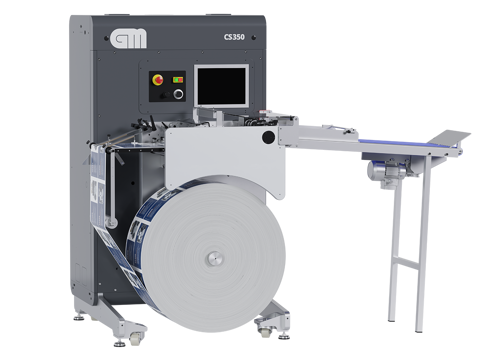

CS350 Sheeter is a versatile roll-to-sheet guillotine sheeter

  • Roll to sheet guillotine cutter

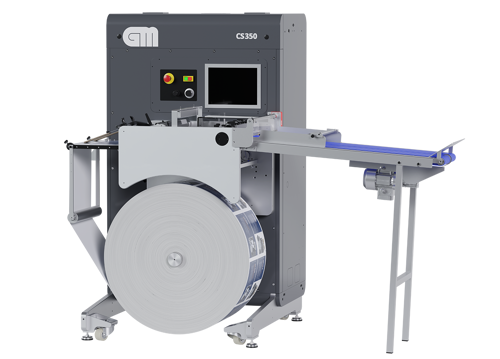

  • Cuts labels and heavy materials
  • In-line and off-line operation with built-in register control

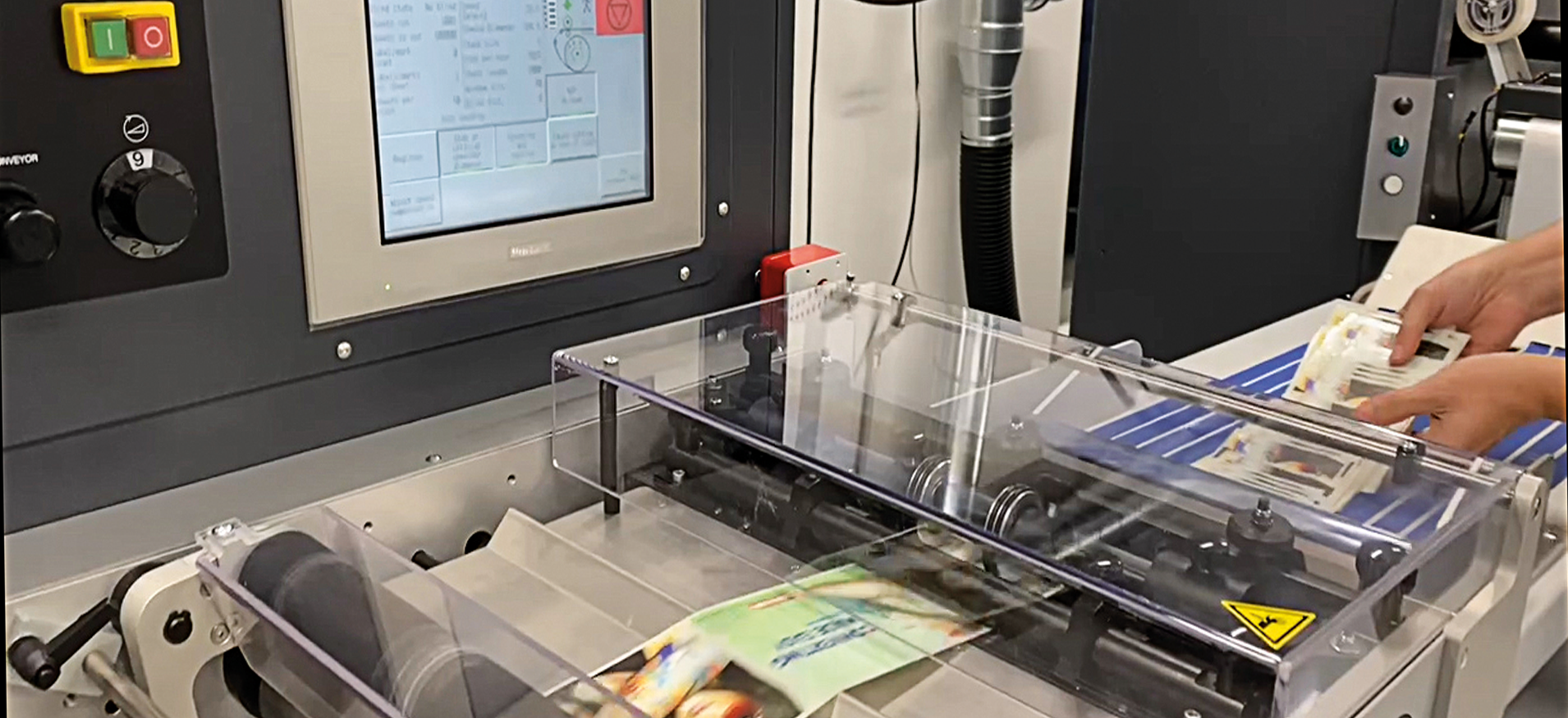

  • User-friendly touch screen for smooth operation
  • Cuts according to length, number of labels, or print marks

Characteristics

The CS350 is GM’s latest high-speed guillotine sheeter providing cutting with high accuracy of ± 0,15 mm.

The machine cuts web into sheets at a speed of up to 30 m/min or up to 14,000 sheets/hour depending on the selected cutting length.

The CS350 offers a web width of 350mm and operates with most digital label presses on the market. It is built for both in-line and off-line operations, and it is compatible with the entire line of GM converters.

The sheeter is developed to cut not only labels but other heavy materials as carton boxes for the pharmaceuticals and cosmetics sector, folding carton used for packaging in the tobacco industry and display blisters.

The sheeter can be additionally equipped with optional rotating shear knives for length slitting or side cutting, as well as wheels, allowing the machine to be easily moved when needed.

Intuitive setting of operating parameters on the touch display, and the machine cuts according to a very large variety of criterias and contains many time saving options.



Features:
  • Touch display setting of label quantity per sheet and other job information
  • Cutting operations according to one of the following criteria:
    • Label intervals by photocell
    • Length measured by an encoder (1/10mm interval)
    • Print mark by a print mark read or capacitive sensor (“clear on clear”). (Optional equipment)

  • Unwind mandrel with separate motor
  • Conveyor belt with a stack and total counter
  • Automatic register control adjusts for changes in the sheeter speed
  • Warning (and stop) when the unwinder is nearly empty
  • Automatic stop in case of unintentional operation of the unwind section
  • "Window detector” allowing for cutting jobs without register mark and for the stop of the sheeter in case of missing label or matrix faults (1 lane)
  • Suspension of cutting while unusable paper runs through the sheeter
  • Switch-over from 1/10mm to 1/100inches when cutting by length
  • When the sheeter is switched off, all settings are preserved (battery backup)
  • Switch-over to inline operation (optional equipment)
  • Optional length slitting with rotating shear knives



NOTE:  CS350 replaces the ETV330.

Multiple use

Cuts not only labels but other heavy materials as carton boxes for the pharmaceuticals and cosmetics sector, folding carton used for packaging in the tobacco industry and display blisters.

High speed sheeter

This high-speed sheeter cuts sheets with a speed of up to 30 m/minute or up to 14,000 sheets/hour.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Max. web width 350 mm 13.8
Min. web width 30 mm 1.18"
Max. sheet length 10 m 33 ft
Min. sheet length 10 mm 0.4"
Max. web speed 30 m/min 98 ft/min
Max. speed in sheets 14 000 sheets/hour
Core diameter 76.2 or 152.4 mm 3 or 6"
Max. unwind diameter
(internal)
Ø800 mm 31.5"
Cutting accuracy approx. ± 0,15 mm ± 0.006"
Max. roll weight, unwinding 150 kg  331 lb
Dimensions (WxDxH) 2.00x1.20x1.75m  6.0x3.15x4.95ft
Power / Air 200 - 240V+N+PE, 13A, 6 bar
