Corecutters
Core Cutters that feed and cut cardboard cores
blue brochure
Get an overview of our compact machines encompassing complete automated converting lines

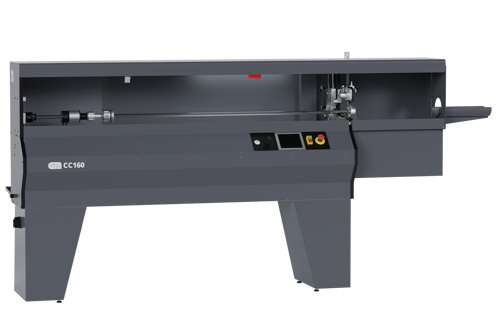

CC160/200S Core Cutters that feed and cut cardboard cores

  • High precision feeding and cutting
  • Job change within a few minutes
  • Production and job setting information
  • Automatic adjustment of machine operation for selected core size and wall thickness.
  • Option for ½-inch cores

Characteristics

The Semi-automatic Core Cutters provide high precision feeding and cutting of cardboard cores of optional length and sizes at high speeds. They are available in two lengths for cardboard cores of a maximum length 1600 mm (63.0”) and 2000 mm (78.7”) respectively. Long experience in the manufacturing of core cutters has resulted in the development of a unique product giving high priority to service friendliness and production speed.

The CC160/200 semi-automatic core cutters are operated by a user-friendly touch display with graphic symbols. It automatically adjusts all machine operations to the selected core size and wall thickness. The changeover from job to job is easily done within a few minutes.



Features
  • User-friendly touch display with production and job setting information.
  • Automatic adjustment of machine operation to the selected core size and wall thickness.
  • Automatic or manual adjustment of the speed according to the core diameter.
  • Integrated ”support menu” and the possibility of change of language.
  • Sensor making the initial cut unnecessary.
  • Software optimizing the cutting to reduce the amount of waste.
  • Error messages appear in clear text which allows for prompt fault-finding and correction.
  • Service-friendly design requiring minimum maintenance.
  • Cutting of cores up to 152mm/6” in diameter and with a wall thickness of up to 15mm (subject to material and amount of glue in core).
  • Nylon or steel anvil
  • Operation in mm or inches.
  • Available in many local languages.

Cores up to 6 inches

CC160/200 can cut cores down to 6” in diameter with high precision cutting.

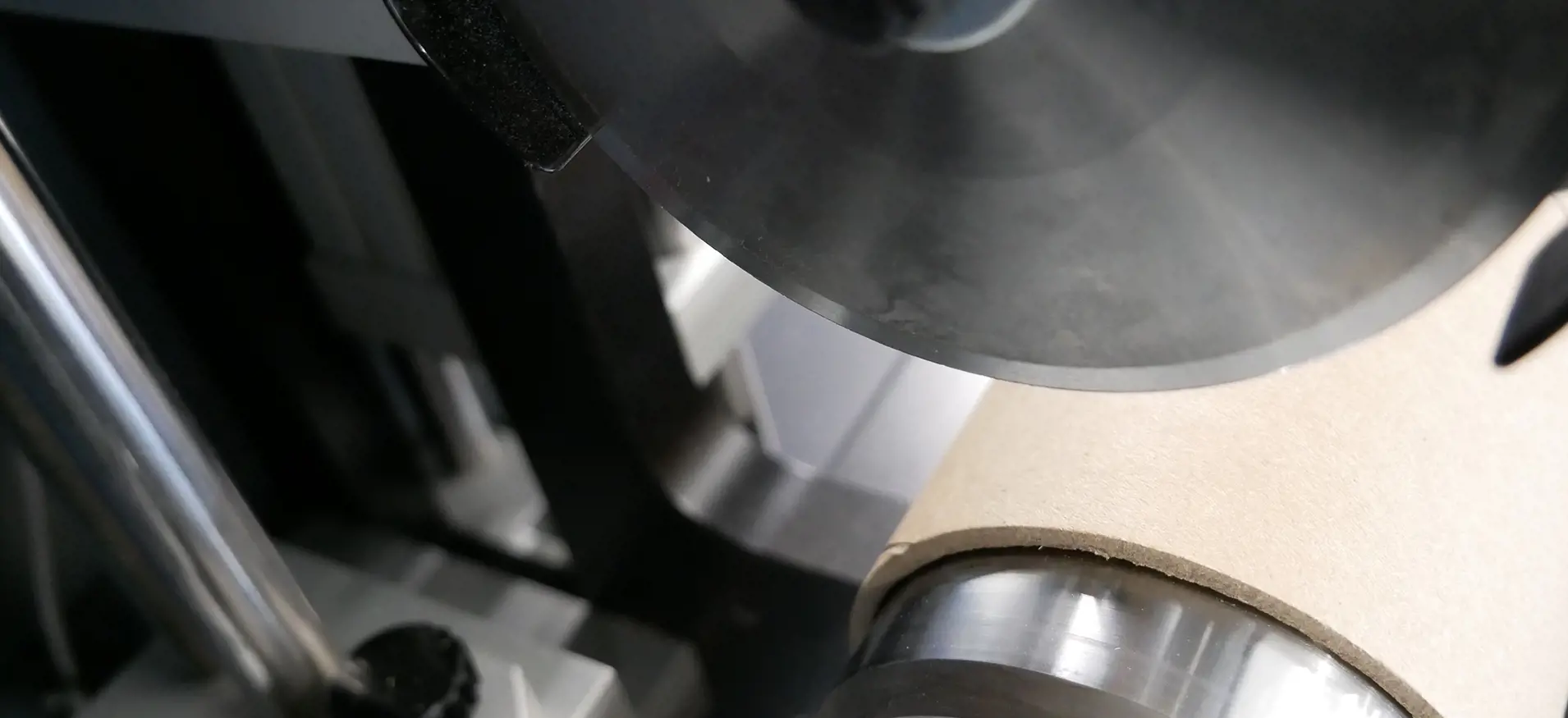

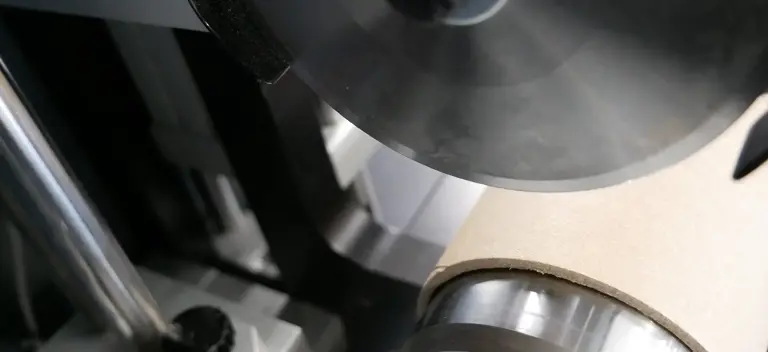

Steel anvil for precision

CC160/200 is born with a steel anvil for high precision cutting of cores. Other anvils are available for different core sizes and wall thicknesses.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Cutting speed
(depending on core size
and material)
Max. 40 - 70 cuts/min
Cardboard core diameters 12.7 - 152.4 mm  0.5 - 6”
One adapter set needed for each diameter
Max core length 1600mm or 2000mm  63” or 78.7"
Material thickness Max. 15 mm  0.59
Air supply Min. 4 bar
Electricity supply 200 - 240V+N+PE, 13A
Dimensions (WxDxH)
PNT160 3.0 x 0.5 x 1.5 m  9.8 x 1.6 x 4.9 ft
PNT200S 3.4 x 0.5 x 1.6 m  11.1 x1.6 x 4.9 ft
