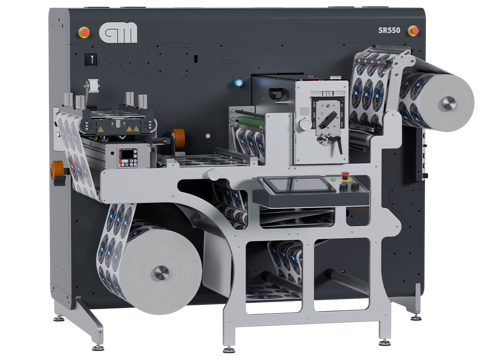

SR350/550 High-speed slitter inspection rewinder

  • High speed slitting up to 300m/min
  • The shortest start/stop distance on the market
  • 100% inspection
  • Seated operator work position possible
  • Semi-Automatic Turret

Characteristics

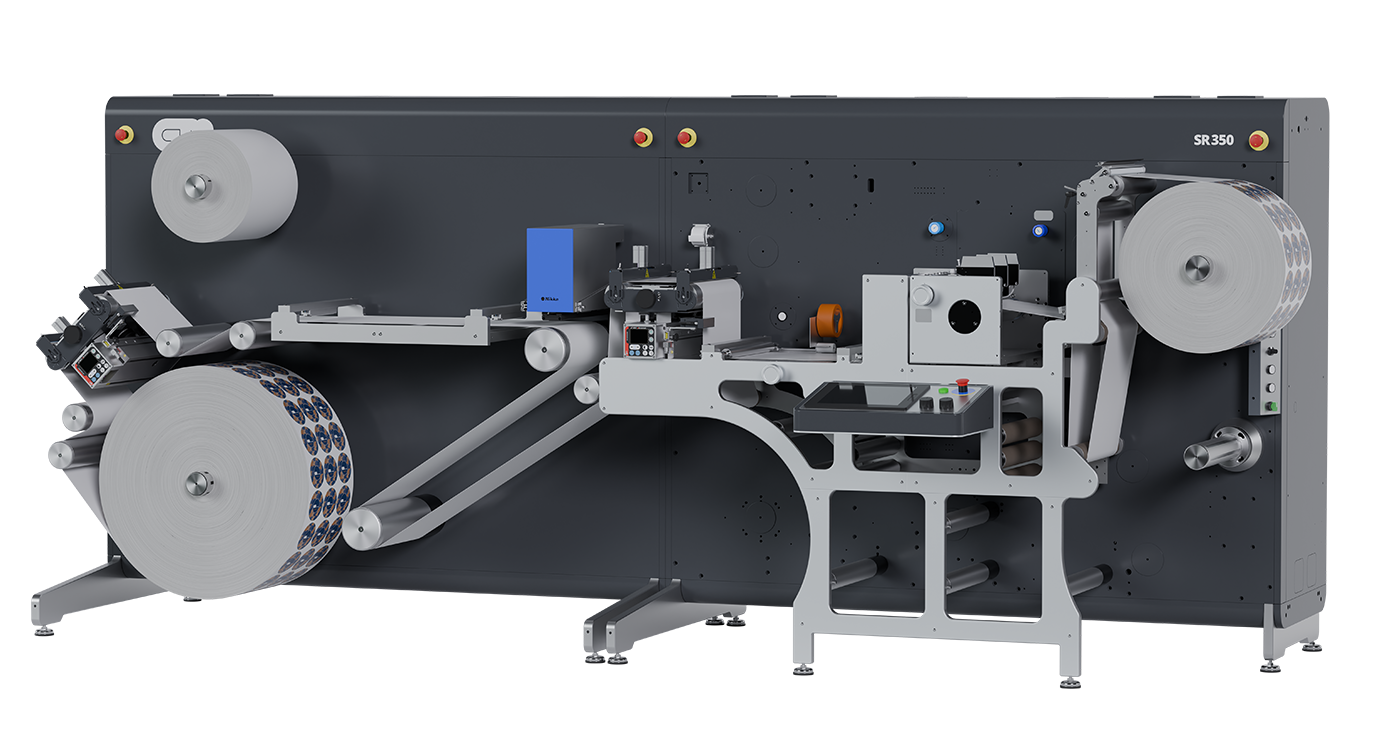

The SR350 is a highly reliable, high-speed slitter inspection rewind machine. The SR350 features the newest in servo motion technology and a unique option for AutoKnives.

Designed for a wide range of labels on paper and plastic liners, including the UPM PP30 and AD PET 23µm liners, booklet, tube laminate, Alufoil, Tyvek, cardboard, multilaminate.

Open concept, easy upgrade and quick set-up
Fully modular open concept allows to add the optiaddingch as 100% inspection camera, scanner bar code reader, ink-jet systems, AutoKnives, waste vacuum ejector and turret rewinder.

Quick set-up routines with the build in job-recall system ensure all systems are ready to run simultaneously, making it faster to change jobs.



Highlights

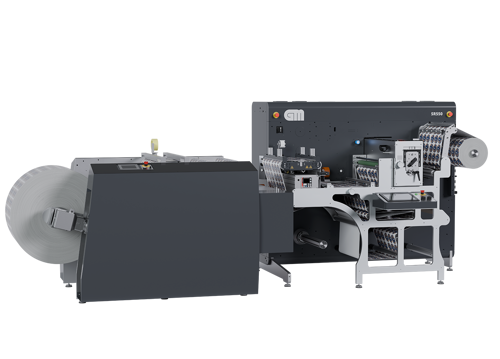

  • High speed up to 300m/min for efficient converting
  • Automatic slitting available
  • Code for laser & slitting – possibility to combine two machines working together thanks to using the same barcodes. The knives are set automatically utilizing information from barcodes.
  • Advanced Tubescan or Nikka M1 label inspection system option, the machine stops precisely within 10cm if detect any error
  • High speed up to 300m/min in full inspection mode with Camera Inspection
  • Full rotary Die Cut option for white labels
  • Length slitting station with 3x knives either (Shear / Razor / Crush)
  • Seated operator work position
  • Domino inkjet printing option for codes producing
  • Upgrade possible – more options available

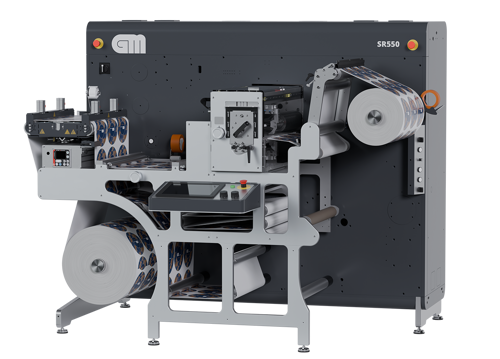

  • Easy web access and maintenance



SR350 characteristics:
  • Web width 350mm
  • Servo drive
  • Speed 300 m/min
  • Unwind diameter 700mm; 3" pneumatic shafts, quick-change shafts for other sizes
  • Splice table with a milled slot to support accurate cuts
  • BST ultrasonic web guide
  • 4 different slitting systems available
  • Rewind diameter up to 500mm, depending on the configuration. Quick change spindles.
  • Touch screen operation

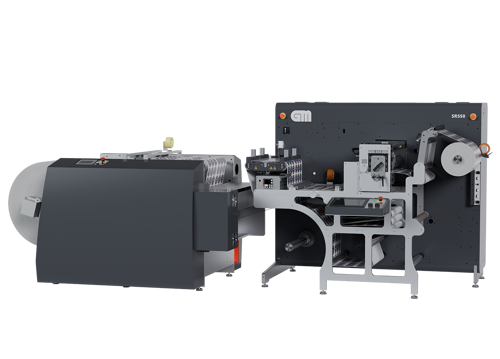

  • Build-in label counter & meter counter
  • Graphical touch screen with web up diagram, label counter, meter counter, alarms, debug/fault information and remote internet hook up – in local language

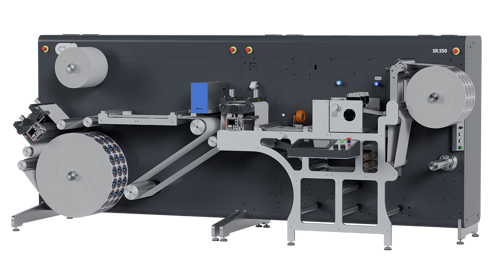

100% Inspection

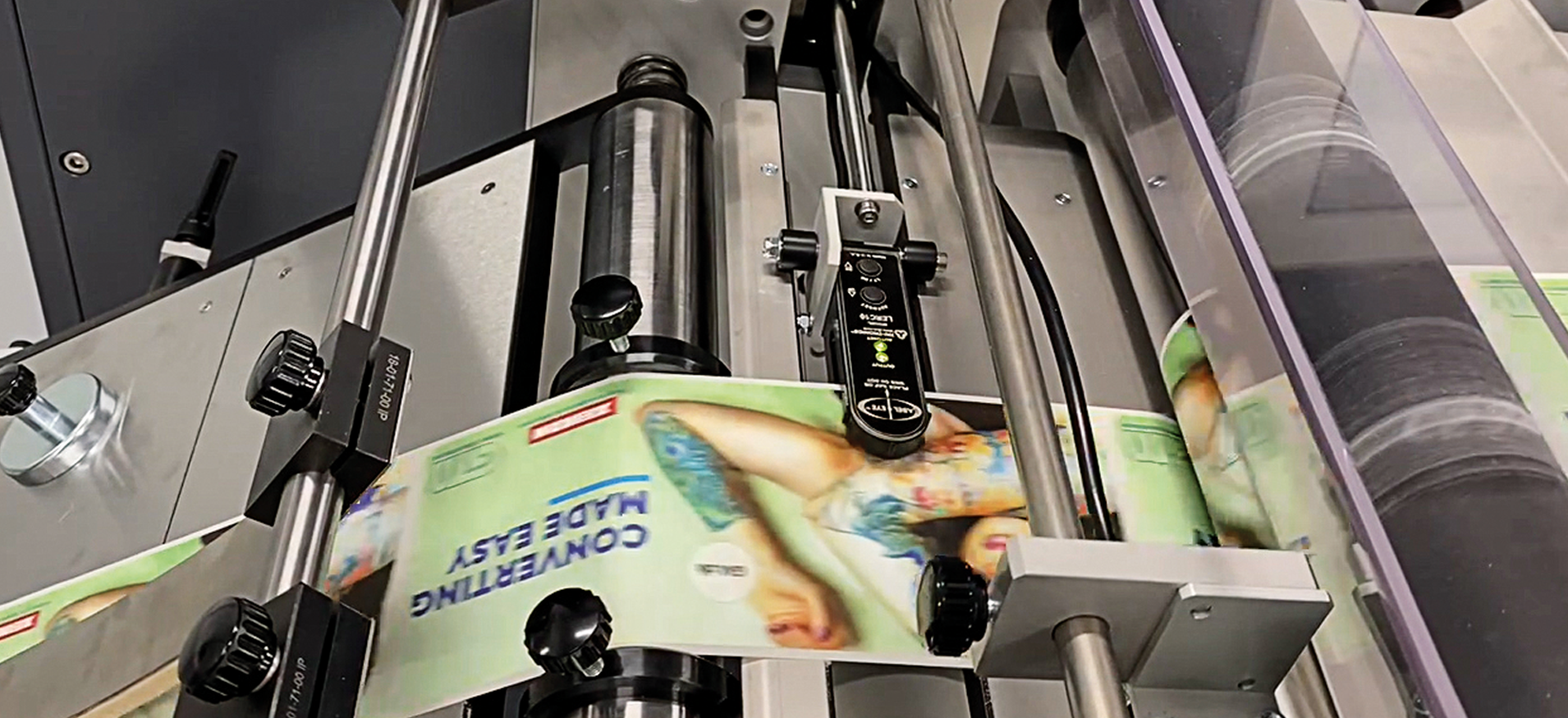

Advanced label inspection system option. The machine stops within 10 cm if any errors are detected.

Easy workflow

Can easily combine SR350 with LC350 by using barcodes. Auto­-Knives are aslo set utomatically utilizing information from barcodes.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 50 - 350 mm  2 - 14"
Substrate thickness 50 - 200 µm  2 - 8 pt.
Max speed 300 m/min  984 ft/min
Max speed with Camera Inspection 200 m/min  656 ft/min
Unwinder
Diameter max  700 mm  27.6"
Unwinder mandrel  76 mm  3"
Rewinder - Single, Dual or Turret option
Diameter max 500 mm  19.7"
Diameter max on Turret 400 mm  15.7"
Core diameter  25-152 mm  1 - 6"
Web guide BST Ultrasonic
Camera Inspection System Nikka video M1+ / BST Tubescan / other
Missing label system

Slitting Station
Knife Type AutoSlitting shear or manual pneumatic crush/shear/razor knife
 Minimum distance crush/razor 12.7 mm 0.5
 Max number of crush/razor knives 14 pcs
   Minimum distance shear  10 mm 0.4
   Max number of shear knives
Minimum distance AutoKnives slitting 15.5 mm 0.61
Max number of knives 16 pcs
Connections & Size
Power/Air  3x400V+N+PE, 16A, 6 bar
Leak current  min 350mA HFI / RCCB
Dimensions (WxDxH) 2.0x1.6x2.0m  6.5 x 5.2 x 6.6 ft.
