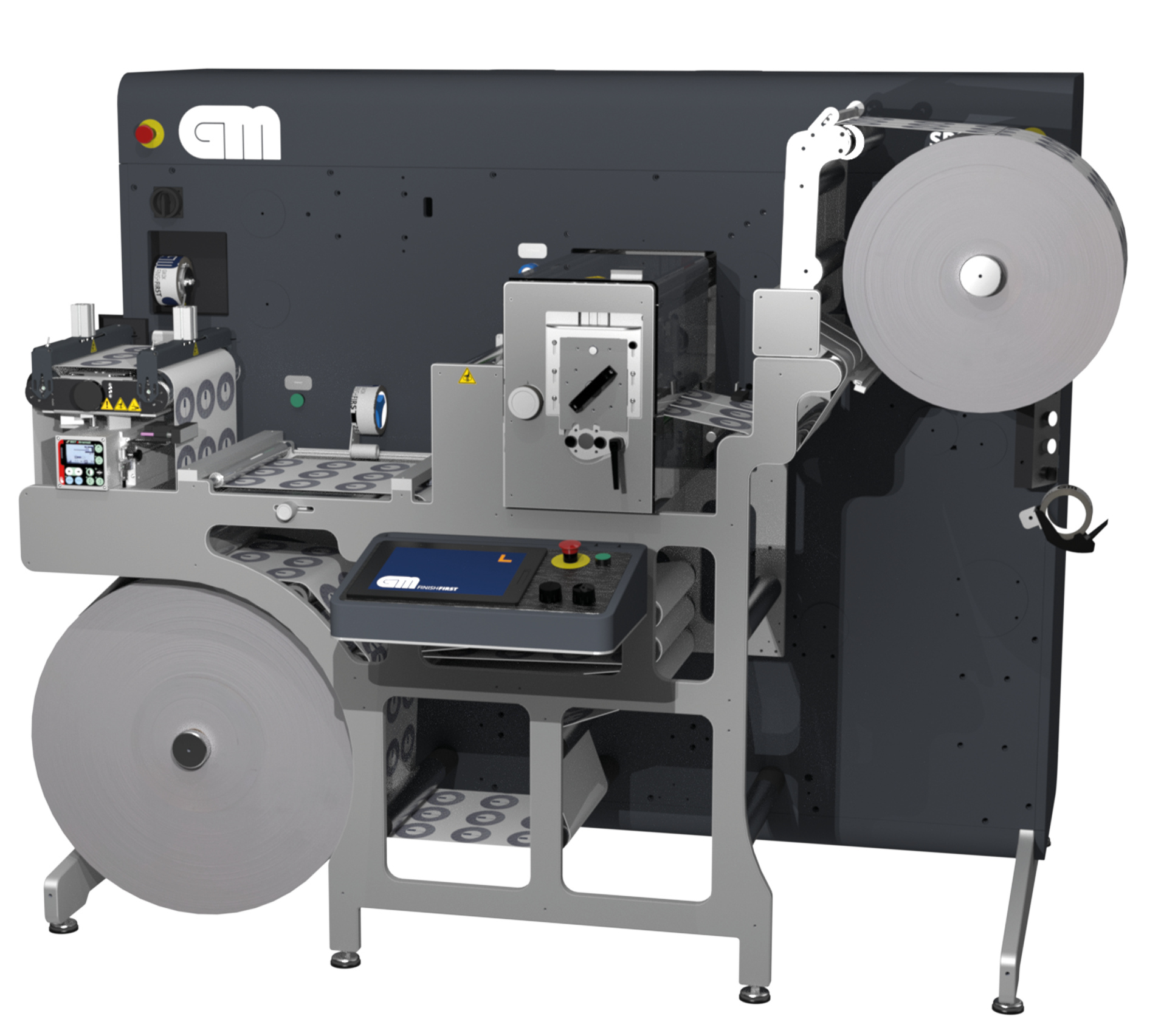

SR350/550 High-speed slitter inspection rewinder

  • High-speed slitting - up to 300m/min
  • The shortest start/stop distance on the market
  • 100% inspection
  • Seated operator work position possible
  • Semi-Automatic Turret

Characteristics

The SR350 is a highly reliable, high-speed slitter inspection rewind machine. The SR350 features the newest servo motion technology and a unique option for AutoKnives.

The machine is designed for a wide range of labels on paper and plastic liners, including the UPM PP30 and AD PET 23µm liners, booklet, tube laminate, Alufoil, Tyvek, cardboard, and multilaminate.



Open concept, easy upgrade, and quick set-up

The fully modular open concept allows you to add the option of a 100% inspection camera, scanner bar code reader, ink-jet systems, AutoKnives, waste vacuum ejector, and turret rewinder.

Quick set-up routines with the built-in job-recall system ensure all systems are ready to run simultaneously, making it faster to change jobs.



Highlights
  • High speed - up to 300m/min for efficient converting
  • Automatic slitting available
  • Code for laser & slitting – possibility to combine two machines working together thanks to using the same barcodes. The knives are set automatically utilizing information from barcodes.
  • Advanced Tubescan or Nikka M1 label inspection system option, the machine stops precisely within 10cm if detect any error
  • Up to 300m/min in full inspection mode with Camera Inspection
  • Full rotary die-cut option for white labels
  • Length slitting station with 3x knives either (Shear / Razor / Crush)
  • Seated operator work position
  • Domino inkjet printing option for codes producing
  • Upgrade possible – more options available
  • Easy web access and maintenance
  • Splice table with a milled slot to support accurate cuts
  • Touch screen operation
  • Build-in label counter & meter counter
  • Graphical touch screen with web up diagram, label counter, meter counter, alarms, debug/fault information, and remote internet hook up – in local language

100% Inspection

Advanced label inspection system option. The machine stops within 10 cm if any error is detected.

Easy workflow

Can easily combine SR350 with LC350 by using barcodes. Auto­-Knives are also set automatically utilizing information from barcodes.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 50 - 350 mm 2 - 14”
Substrate thickness 50 - 200 µm 2 - 8 pt.
Max speed 300 m/min 984 ft/min
Max speed with Camera Inspection 300 m/min 984 ft/min
Unwinder
Diameter max 700 mm 27.6”
Unwinder mandrel 76 mm 3”
Rewinder - Single, Dual or Turret option
Diameter max 500 mm 19.7”
Diameter max on Turret 400 mm 15.7”
Core diameter 25-152 mm 1 - 6”
Slitting Station
Knife type Pneumatic crush, shear, razor or AutoKnives
Minimum distance crush/razor 12,7 mm 0.5
Minimum distance shear  14 mm 0.55
Minimum distance AutoKnives 15,5 mm 0.61”
Camera Inspection System  BST Tubescan, Nikka M+
Webguide BST Ultrasonic
Dimensions
W x D x H 2,0 x 1,6 x 2,0 m 6.5 x 5.2 x 6.6 ft
W x D x H (with turret) 3,0 x 1,6 x 2,0 m 9.8 x 5.2 x 6.6 ft
