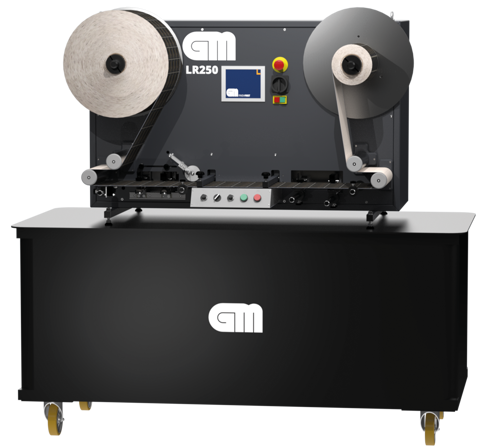

The LR250 is an economical Inspection Rewinder and comes as a vertical tabletop model with a splicing table and two motor controllers – one working as an unwinder and the other as a rewinder. The design offers control of the web tension which ensures superior winding quality.
The LR250 has expansion mandrels with sleeves easily exchangeable to other sizes. A touch panel makes the operation of the machine very easy with graphic figures showing the rewind direction, and the direction of rotation for the shafts. The machine has an integrated label counter.
The only optional device to be ordered to make the counting and inspection functions active is the relevant sensor. In this way it is easy for the user to upgrade the machine with the different options - the only thing needed is the sensor.
In case of a missing label, the machine stops and places the error on the splice table with high precision.
Other options include splice clamps and extra sleeves with different diameters.
Choose your sensor
Depending on your needs, you can select the appropriate sensors for inspection - the missing label system, meter counter, splice detector or the capacitive sensor for “clear-on-clear” labels.
Outstanding rewinding results
Get high-quality rolls due to the two motors. One that controls the speed of the unwinder and the other controls the torque of the rewinder.
18 November 2020
01 September 2017
|Speed||100 - 300 m/min||328 - 984 ft/min|
|*depending on diameter|
|Max unwind diameter||400 mm||15.7”|
|Max rewind diameter||400 mm||15.7”|
|Pneumatic shafts diameter||25 - 120 mm||1 - 4.7”|
|W x D x H||1,3 x 0,8 x 0,8 m||4.3 x 2.6 x 2.6 ft|
