LR250+ inspection rewinder is designed and manufactured to deliver an outstanding performance that will boost your everyday label productivity.
This rewinder is suitable for general label production and more advanced work such as pharmaceutical applications.
The standard configuration of the LR250+ includes a count and missing label control for all types of labels. Extra sensors can be added to support clear-on-clear labels, and an integrated web guide ensures perfect roll quality.
The two-way rewinder has web tension control, nip, and an adjustable splice table with pneumatic splice clamps. It is equipped with air expansion mandrels with sleeves easily exchangeable to other sizes.
If 100% inspection is required the LR250+ is prepared for a camera inspection with PDF verification required for pharma or other critical applications.
Turn the LR250+ Rewinder into a mini digital press with the optional full UV inkjet system.
Finally, the LR250+ is equipped with an ergonomic lift table to fit operators of all heights.
Perfect roll quality

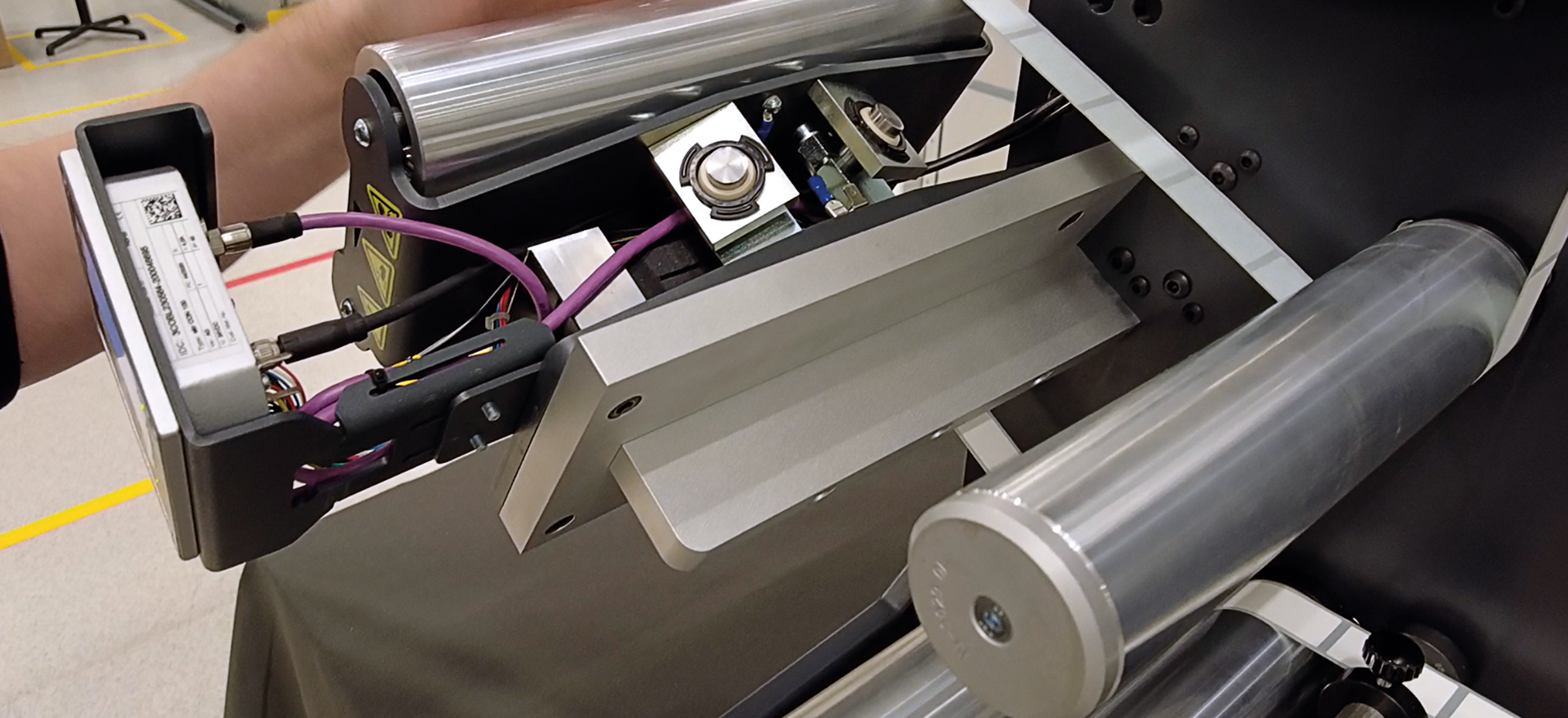

The integrated web guide corrects the position of the web precisely and ensures excellent winding quality even with very narrow rolls.
Full tension control
Tension separation allows the setting of different values of tension of unwinder and rewinder. This is especially important with thin sensitive materials or materials on a PET liner.
22 March 2021
|Max web width:||250 mm||9.8”|
|Max speed||200 m/min||656 ft/min|
|Max unwind diameter||400 mm||15.7”|
|Max rewind diameter||400 mm||15.7”|
|Pneumatic shafts diameter||25 - 120 mm||1 - 4.7”|
|Inspection system||BST Tubescan, Nikka|
|W x D x H||1,7 x 0,9 x 0,9 m||5.8 x 3.0 x 3.0 ft|
