Laminators
Superior protection against scratches and water. Self-adhesive laminators with optional slitting.
blue brochure
Discover the unique world of labels with our GM catalogue

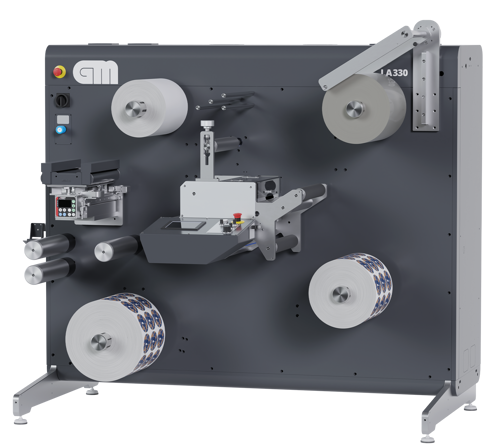

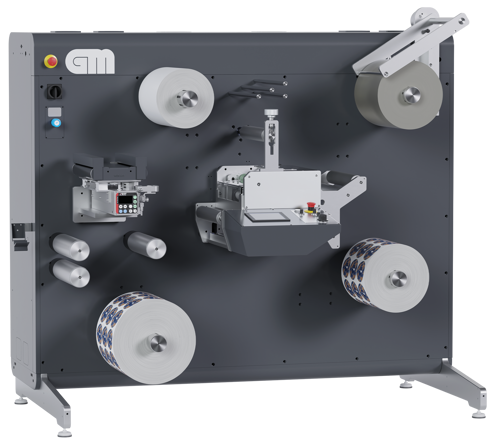

LA330 - lamination and slitting combo machine

  • A lamination and slitting combo machine
  • Suitable for digital labels or any other product printed on a roll and presented on a web
  • LA330 runs up to 70m/min
  • Slit with Automatic Slitting Station

Characteristics

The GM Photo Coater is designed for the UV coating of photo paper with superior quality. It also provides UV coating for photo books, labels, stickers, and other roll-feed products.

The UV guarantees that professional quality photos printed on paper using silver halide technology get the optimal protection and required gloss level. UV coating ensures a brilliant appearance and enriches the colors. It prevents the colors and images from fading and provides excellent resistance against weather, UV light, abrasion, sweat, and other elements.

The machine has a compact footprint and is easy to operate. The helical gears used in the coater ensure perfect coating quality due to the minimum level of vibration. The drive train in the coater is completely servo driven offering low maintenance servo-driven tension control and good registration. The coating station uses the flexographic principle, so the actual coating thickness can be controlled very accurately saving varnish costs.

The GM Photo Coater features the newest electronics, a newly designed control panel, and a user-friendly interface. The graphical touch screen shows the machine configuration, spindle directions, and web-up. The machine can be equipped with optional modules allowing spot varnish, lamination, cold foiling, and slitting. The large 600 mm bottom rewinder offers fewer stopovers.

GM Photo Coater can run offline and in line with photobook manufacturing equipment and digital printers.



Options:
  • The UV Flexo varnish station with optional registration allows a higher level of embellishment with spot and Super Gloss varnish.
  • GM SmartCrush - An ultra-quick set knife system, allowing fast and precise setting of each crush knife – also while running.
  • GM Mini Buffer - easy switching between inline and offline mode. It synchronizes the speed between the digital press and the finisher.

Flexible lamination

Unwind with tension control to support laminates with and without backing paper

Beauty and protection

A roll-to-roll laminator designed to give glossy or matt surfaces onto labels

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 330 mm 13” (other sizes on request)
Max speed  70 m/min 300 ft/min
                                             *The higher speed is possible on request
Web guide BST Ultrasonic
Max unwind diameter 600 mm (800 mm optional) 23.6" (31.5" optional)
Max rewind diameter 500 mm standard 19.7”
Rewind torque 10 - 100 Nm, adjustable on the front panel
Max roll size 250 mm 9.8”
Dimensions
W x D x H 2,8 x 1,4 x 1,7 m 9.2 x 4.6 x 5.6 ft
