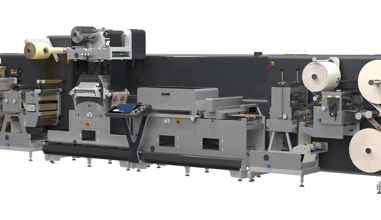

DC550Flex - a versatile label finisher for high-volume digital label printers

  • Short lead time on standard platform
  • Maximum modularity
  • Semi-rotary flexo with spot
  • Automated slitting station
  • FastStrip - high-speed stripping
  • Online support and remote diagnostics
  • Industry 4.0 ready
  • Available in 350 & 550 mm web width versions

Characteristics

Highlights:

DC550Flex is built for professional label printers with the need for a complete and versatile solution in high-volume digital printing.

DC550Flex is an efficient and economical label finisher that is built with the same components as the DC550Flex+ and comes with handy options like format-free semi-rotation spot varnish, semi-rotation die-cutting, slitting, and dual rewind.

This modern platform ensures quick setup
and flexibility along with an industry-leading user interface that gives the operator a graphical representation of the machine configuration and production flow.

Upgrade your production with value options like Turret rewinding, in-register lamination (MultiLayer), AutoKnives or Quick CrushKnives, FastStrip, Corona, web clean, back scoring & inline buffer.

Finally, DC550Flex is Industry 4.0 certified and prepared for in-line operation with all major digital presses.

This modular finishing platform will transform your production to the next level!



Features:
  • Easy to use
  • Automated production with job recall and QR code option
  • Modern platform ensuring quick setup and flexibility
  • Industry-leading user interface giving the operator a graphical representation of the machine as installed
  • Industry 4.0 compliant
  • "Never break" technology prevents matrix rewind break
  • Web-advance for a fast roll change
  • Online Support – easy web access and maintenance
Options:

Superior end-results

A cost-efficient label finisher built for volume production of added-value labels, like multi-layer labels.

Automated operation

Label production on this flexible and modern platform delivers quick setups and minimal waste. Improve productivity with less human intervention.

Value for customers

Create more value for your customers with foiling, spot varnish, and lamination.

CERM increases efficiency

GM converters are ready for integration with all digital label presses for full inline production. The possibility of integration with the CERM system increases efficiency and automates the workflow at all levels of production.

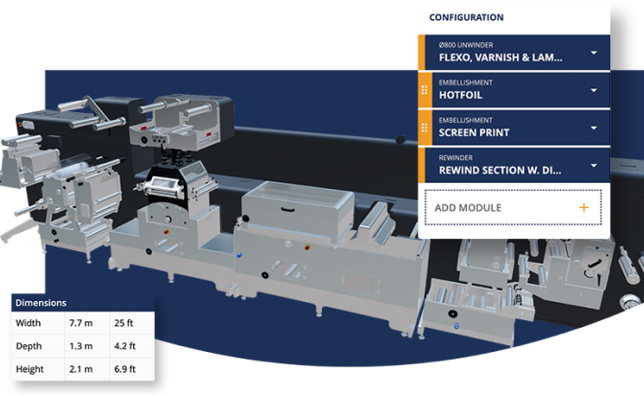

3D Product
Configurator

3D Configurator 4 1

Try out our 3D product configurator and customize your finishing line according to your specific preferences and needs.

  • Customize your future premium finishing line.
  • Simplify the product and module selection process for your business.
  • Get a realistic preview of your finishing line.
  • Get fast and accurate pricing from our sales department.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 50 - 550 mm 2 - 21.6”
Substrate  50 - 200 µm 2 - 7.9 pt.
Die Station
Max semi-rotary speed 50 m/min 164 ft/min
Max full-rotary speed  90 m/min 295 ft/min
Die plate size (repeat) 50 - 558,8 mm 2 - 22”
Unwinder
Diameter max. 700 mm 27.5”
Core diameter 76,2 mm  3”
Rewinder
Diameter max. on dual-shaft 500 mm 19.7”
Diameter max on Turret 450 mm  17.5”
Standard core diameter 76,2 mm  3”
Waste matrix rewinder diameter Up to 800 mm on request Up to 31.5” on request
Semi-rotary Flexo Station - Flower Style
Print cylinder size 228,6 - 635 mm  9 - 25”
Spot varnish with digital sensor register control and slow run included
Slitting Station
Knife type  Pneumatic Quick CrushKnives, shear, or AutoKnives
Minimum distance Quick Crush 27 mm 1.1”
Minimum distance shear 14 mm 0.55”
Minimum distance AutoKnives 15,5 mm 0.61”
Dimensions
W x D x H 4,0 x 1,6 x 1,7 m 13.1 x 5.3 x 5.7 ft
