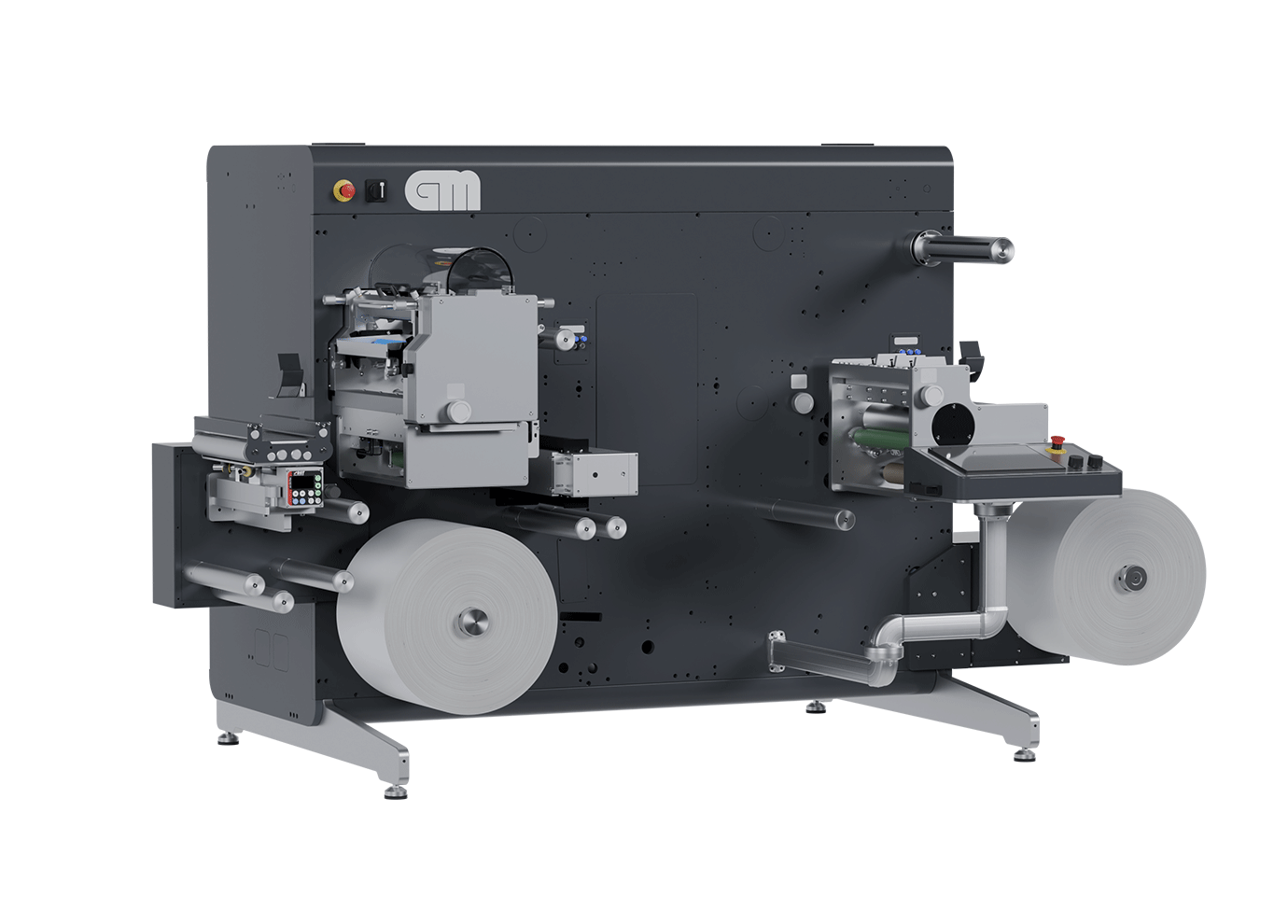

PC330 - designed for UV coating of photo-paper with superior quality

  • Premium UV coating quality for photo book applications, labels and other roll feed products
  • Special flow anilox and long drying path ensures smooth coatings
  • Angled gear for minimal play in printing cylinders
  • Energy efficient GEW E2C lamp with large reflector
  • Servo driven technology for perfect web tension
  • User friendly graphical touch screen in the local language
  • Internet connection for remote support

Characteristics

The GM Photo Coater is designed for the UV coating of photo-paper with superior quality. It also provides UV coating for photo books, labels, stickers and other roll feed products.

The UV guarantees that professional quality photos printed on paper using silver halide technology gets the optimal protection and required gloss level. UV coating ensures a brilliant appearance and enriches the colours. It prevents the colours and images from fading and provides excellent resistance against weather, UV light, abrasion, sweat and other elements.

The machine has a compact footprint and is easy to operate. The helical gears used in the coater ensure perfect coating quality due to the minimum level of vibration. The drive train in the coater is completely servo driven offering low maintenance servo-driven tension control and good registration. The coating station uses the flexographic principle, so the actual coating thickness can be controlled very arcuately saving varnish costs.

The GM Photo Coater features the newest electronics, a newly-designed control panel and user-friendly interface. The graphical touch screen shows the machine configuration, spindle directions and web-up. The machine can be equipped in optional modules allowing spot varnish, lamination, cold foiling and slitting. The large 600 mm bottom rewinder offers less stopovers.

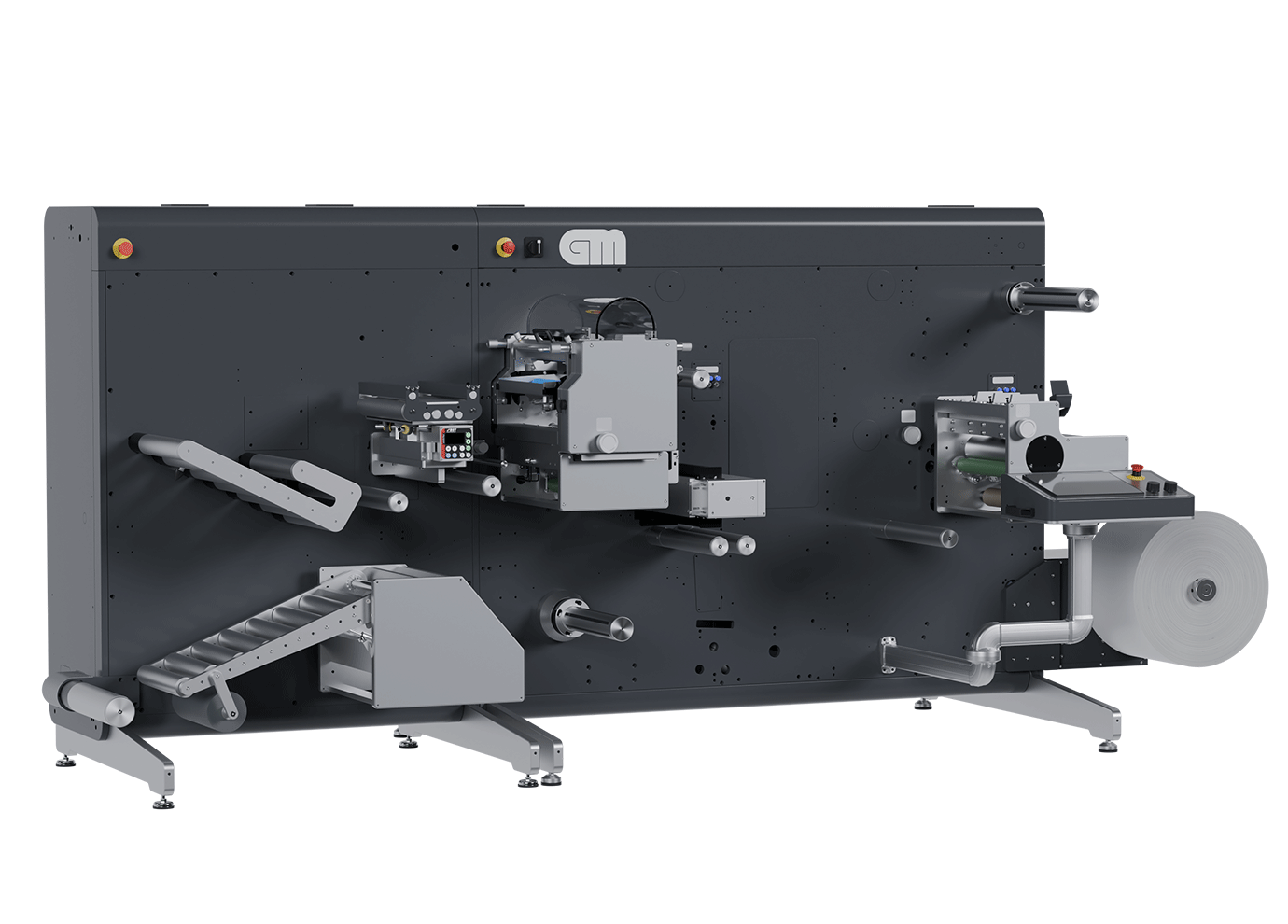

GM Photo Coater can run offline and inline with photobook manufacturing equipment and digital printers.



Options:
  • The UV Flexo varnish station with optional registration allows the higher level of embellishment with spot and Super Gloss varnish.
  • GM SmartCrush - An ultra-quick set knives system, allowing fast and precise setting of each crush knife – also while running.
  • GM Mini Buffer - easy switching between inline and offline mode. It synchronizes the speed between the digital press and finisher.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 50 - 330 mm 2 - 13”
Substrate  50 - 200 µm 2 - 8 pt.
Max speed  72 m/min 236 ft/min
Unwinder
Diameter max. 600 mm 23.6"
Core diameter 76,2 or 152,4 mm 3 or 6”
Rewinder
Max diameter of the top rewinder 500 mm 19.7"
Max diameter of optional bottom rewinder 600 mm 23.6"
Core diameter 25 - 152 mm 1 - 6”
Standard core diameter 76,2 mm 3”
Flexo Station
Print Cylinder size 228 - 482,6 mm 9 - 19”
Spot varnish option with digital sensor register control and slow run
Slitting Station Option
Knife Type Pneumatic crush, SmartCrush, shear or razor
Minimum distance crush 12,7mm 0.5
Minimum distance shear  10 mm 0.4
Power/Air  3x400V+N+PE, 32A, 6 bar
Dimensions (WxDxH) 2,4 x 1,4 x 1,7 m 7.8 x 4.6 x 5.6 ft
