The best way to impress consumers is the right combination of quality and beauty, and this is where the HF330+ flatbed hot stamp unit will help you out.
With a perfect register, 50 tons of pressure and a high production speed in foiling, the HF330+ will make label converters competitive in the high-end label markets as wine & spirits and cosmetics.
The HF330+ is an innovative unit that will give your labels an impressive and unique look-and-feel. The HF330+ can be used for foil stamping, embossing, screen printing, or one pass foil & embossing.
In relation to quality in hot stamping, the HF330+ flatbed technology is the best choice in the market, and in relation to beauty, the HF330+ can add very thin lines and detailed elements of gold, silver or even holograms to your labels.
The electronic platform ensures optimal and time saving operation, while providing 24-7 online support.

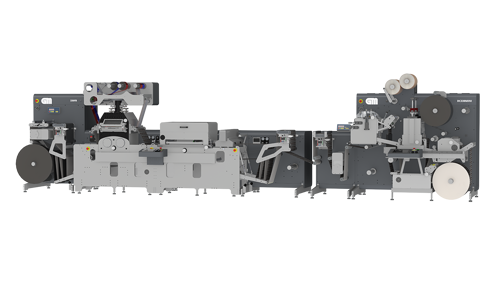

GM HF330+ can run INLINE with DC330Mini and other GM die-cutters providing a complete solution from roll to finished product.
Enter new markets
Add value to the labels and enter new luxury markets such as wine, spirits and cosmetic products.
Amazing effects with multiple foil streams
Gold and Silver are classics, but special effects like clear foils for gloss imitations and high gloss signature black is possible as well.
Fast and easy job change
QuickMount enables very fast mount of ale/female embossing plates. This mounting tool can save the operator many hours in job change- hours every week.
Adapts to all your needs
Regardless if your needs are to die cut labels or to create high-quality embellishments with hot foil, screen printing or digital varnish. This machine offers maximum machine modularity.
19 February 2021
13 October 2020
|Web width||50 - 330 mm||2 - 13”|
|Substrate||50 - 200 µm||2 - 8 pt.|
|Hot Foil & Embossing|
|Max Speed||44 m/min||143 ft/min|
|Hotstamp plate size (WxL)||330 x 304,8 mm||13 x 12"|
|Max Speed||20 m/min||65 ft/min|
|Print area||330 x 330 mm||13 x 13"|
|Frame full size (WxDxH)||660 x 500 x 30 mm||26 x 19.7 x 1.2"|
|Max. unwind diameter||700 mm||27.6"|
|Core diameter||76,2 or 152,4 mm||3 or 6"|
|Max. rewind diameter||700 mm||27.6"|
|Core diameter||25 - 152,4 mm||1 - 6"|
|Dimensions (WxDxH)||5,0 x 1,4 x 1,9 m||16.4 x 4.6 x 6.3 ft|
|Power/Air||3x400V+N+PE, 32A, 6 bar (87psi)|
|Exhaust||Ø100 mm, 800 m³/h. Outside.|
