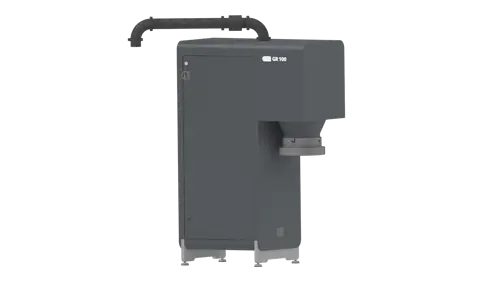

GR 100 waste shredder - for inline use with slitter rewinders and finishing units

  • supports slitting speeds of up to 300 m/min
  • the shredder can easily take two side trims
  • the integrated oiler makes it possible to run side trim that contains adhesive
  • long (60m) waste bag for continuous production and easy change while running
  • dust filter eliminates the environmental contamination
  • the cyclone air suction system efficiently collects the dust and thus reduces the frequency of dust filter replacement and machine downtime
  • a silencer reduces high noise from the shredder

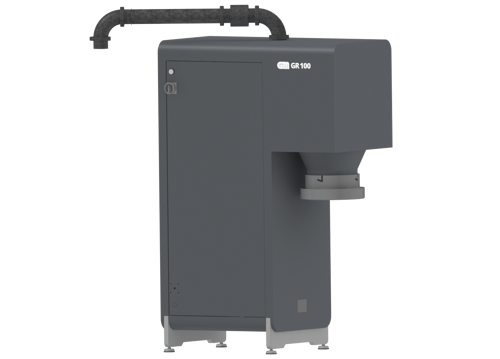

  • easily adjustable inlet, for compatibility with various roller sizes and machines
  • low friction and low static inlet tubes increase machine efficiency and make waste collection hassle-free
  • the new design ensures a perfect fit with the current GM V4 machines

Characteristics

The GR100 Waste Shredder is designed for inline use with GM fast slitter rewinders and finishing units as well as printing machines for removing and shredding the side trim. The shredder efficiently cuts a variety of materials including paper, foil, film, plastics, and cardboard, and reduces them to just a few per cent of their original volume.

The bag can be changed very easily and quickly. This continuous liner system makes it possible to replace bags in a completely sealed and dust-free manner.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Max. trim width 30mm 1.2"
Max. trim extraction speed 300m/min 984 ft/min
Connection tube diameter
inlet int./ext. dimensions
2x50mm / 90mm
Power supply 200-240V AC / 50-60Hz / 1phase
Dimensions (LxWxH) 1.1 x 0.6 x 1.7 m 3.7 x 2.0 x 5.7 ft
