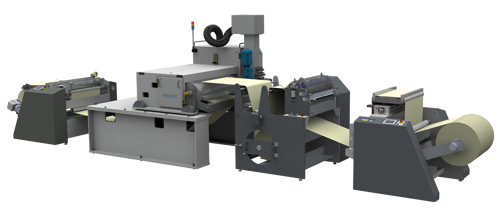

EB30 - Integrated Coating Module with eBeam Curing

  • Designed for HP Indigo
  • FDA compliant
  • Food safe - ideal for flexible packaging
  • Fully controlled curing process
  • Best TCO on the market

Characteristics

EB30 is an integrated module that features an unwinder (LUW30) varnish/lamination station and a rewinder (LRW30) designed to run in-line with EBEAM systems for curing a substrate. It is also designed as a stand-alone unwinder, varnish station and rewinder system. It is a microcontroller controlled system that integrates its four component units in a client way and allows easy modification of the unit.

EB30 has a user-friendly touch screen interface that allows the operator to operate the machine in an easy way. The machine has an enhanced taper tension control algorithm that ensures that excellent rolls are made.



EB30 Coating Line highlights:
  • Outstanding ink protection and excellent gloss matte and soft-touch finishes
  • Increased heat resistance enables heat sealing to form pouches
  • No harmful photoinitiators
  • Cross-linking thin-film laminating adhesives
  • Room temperature process, great for heat-sensitive substrates
  • High process efficiency: instant curing, no post-process storage needed

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 762 mm 30"
Substrate thickness 50 - 200 µm  2 - 8 pt.
Speed max. 72 m/min  236 ft
Unwinder/Rewinder
Unwind max. Ø500 mm 20"
Rewind max. Ø500 mm 20"
Core diameter 76,2 mm 3"
Flexo Station
Varnishing roller 228 - 406 mm 9 - 19"
Spot varnish option with registration and slow run
Length approx. 8,6 m 28 ft
