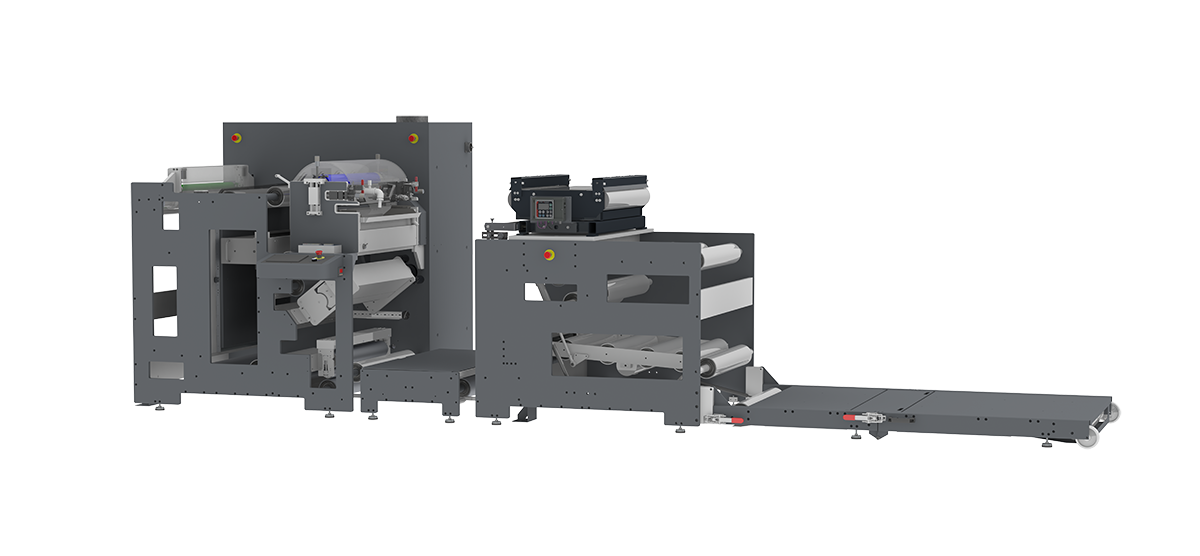

IC30 Inline Coating System

Designed for HP Indigo
Fully modular wide web inline-coating system
Outstanding ink protection and excellent gloss matte and soft-touch finishes
Water-based and UV varnish
Optional sheeter

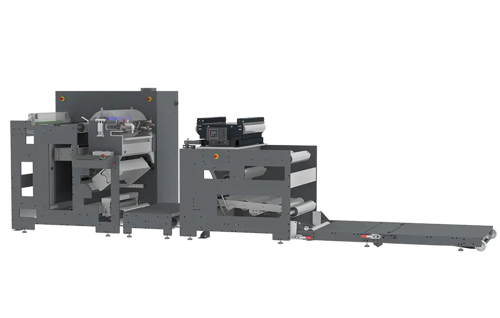

IC30 Inline Coating System - Outstanding ink protection and excellent gloss matte and soft-touch finishes

Characteristics

The GM IC30 is an innovative, inline, or offline 30-inch coating system with an optional selective coating solution for flexible packaging films and carton folding substrates using hot-air, UV, or EBEAM curing technology. The machine is 100% modular and designed for perfect integration with 30-inch wide digital presses like HP Indigo 20000/ 30000. IC30 offers state-of-the-art coating and is ideal for a wide range of applications (depending on configuration), including flexible bags and pouches, shrink sleeves, twist wraps, carton substrates for the pharmaceutical market, cosmetics, consumer electronics, promotional, gifts, and more.

IC30 and HP Indigo provide a comprehensive digital printing production line, enabling the printing of full surfaces, selective coating, and efficient stacking.

IC30 Coating Line highlights:

Fully modular wide web inline-coating system
Outstanding ink protection and excellent gloss matte and soft-touch finishes
Enabling production of any size job from very small batches to large-scale production
Spot varnish, sheeting, stacking modules, and more options can be added
UV varnish and/or water-based configuration
EBEAM curing can be added
Flexible, quick, and self-cleaning sleeve-change over
Enabling production of any size job from very small batches to large-scale production

Watch our tutorials

22 February 2021

IC30 Inline coating & sheeting for 30" wide HP INDIGO presses

Technical Specifications

Specifications	Metric	Imperial
Web width	200 - 762 mm	7.9 - 30”
Substrate thickness	up to 550 µm	21.7 pt.
Max speed	55 m/min	180 ft/min
Web guide	BTS Ultrasonic
Flexo Station
Print Cylinder size - option 1	228 - 482,5 mm	9 - 19”
Print Cylinder size - option 2	482,5 - 1016 mm	19 - 40”
Spot varnish options with registration and slow-run
Dimensions
W x D x H	6,0 x 2,2 x 1,7 m	19.7 x 7.2 x 5.6 ft
