HS30 is a high-speed rotary sheeter for 30” wide web

Designed for HP Indigo
A cut-to-mark high-speed sheeter for 30” wide web

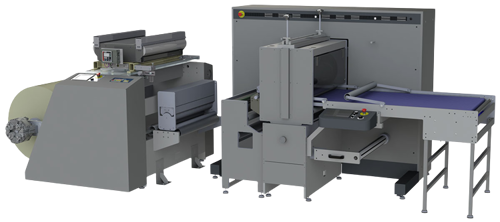

HS30 High Speed Rotary Sheeter - A cut-to-mark high-speed sheeter for 30” wide web

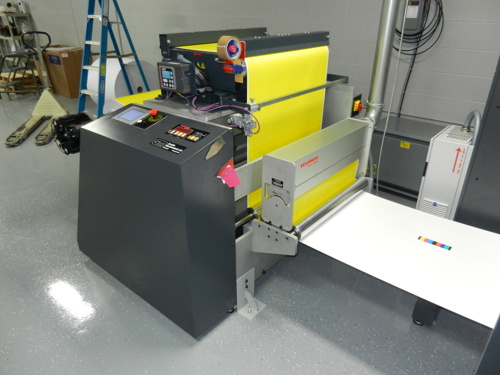

HS30 Unwinder - Is a double-sided hydraulic unwind stand with tension control and lift from floor function

Characteristics

The HS30 has been designed to convert roll-fed material into sheets. The size can be from 20” to 40” depending on the tooling.

The precision register is managed by servo drive technology. The HS30 can deliver sheets to a conveyer or a stacker solution. The unwind station is a double-sided hydraulic unwind stand with tension control and lift-from-floor function.

The maximum diameter is 800 mm. The HS30 delivers material to a conveyor belt. An external stacking solution may be required.

Technical Specifications

Specifications	Metric	Imperial
Web width	254 - 762 mm	10 - 30”
Substrate thickness	80 - 500 gsm
Die Station
Full-rotary speed	60 m/min	197 ft/min
Repeat range	508 - 1016 mm	20 - 40”
Unwinder
Diameter max.	800 mm	31.5”
Max roll weight	700 kg	1543 lbs
Core diameter	76,2 mm	3”
Rewinder for waste
Diameter max.	400 mm	15.7”
Core diameter	76,2 mm	3”
Flexo Station Option
Varnishing roller	Ø97.2mm / SH65
Spot varnish repeat plate cylinder (optional)	305 - 482,6 mm	12 - 19”
Slitting Station Option
Knife type	Pneumatic crush or razor
Minimum distance crush	12,7 mm	0.5”
Power/Air
Power / Air	3x400V+N+PE, 16A / 6 bar
Dimensions (WxDxH)	4,8 x 1,9 x 1,7 m	15.7 x 6.2 x 5.6 ft
Exhaust	Ø100 mm / 800m3/h
