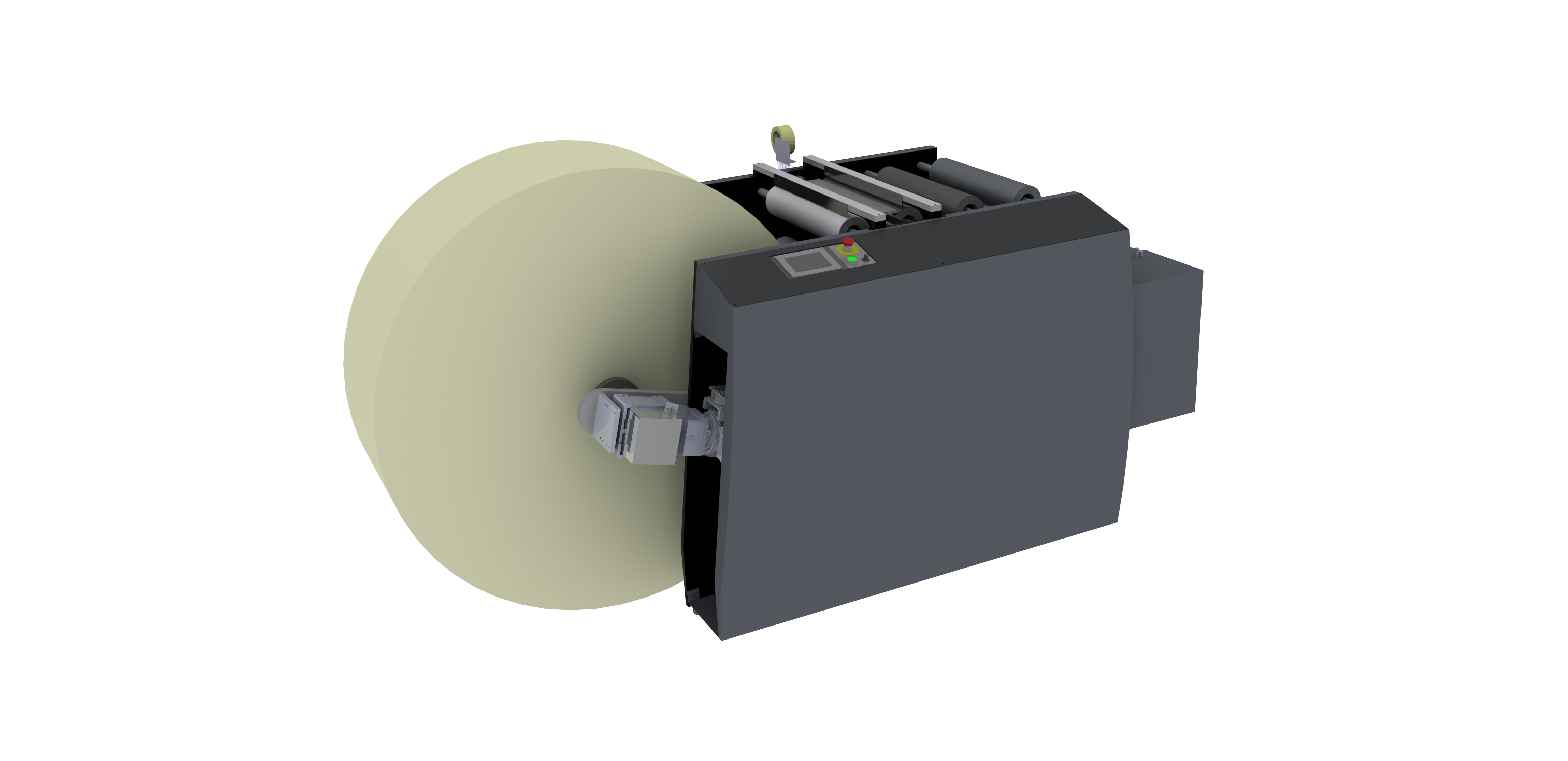

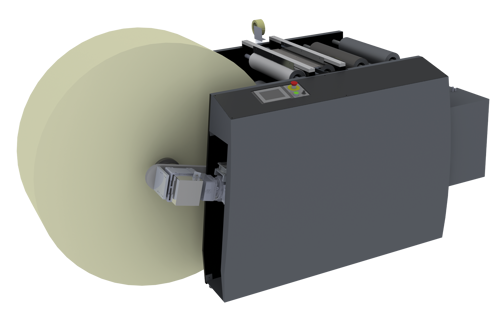

LUW500 Label Unwinder for the heaviest and most demandingjobs

  • Roll pick-up from the floor
  • Stepless electronic tension setting
  • Easy to use graphic touch screen
  • Air expanding mandrels
  • Low unwind warning signal

Characteristics

For the heaviest and most demanding jobs, GM offers this multi-purpose, stand-alone unwinding unit with splice table, web guide and slitting knife. The entire module is electronically synchronized and capable of communicating with a variety of printing systems. Unit has a low unwind signal for press.

Specific interfaces are available eg. for Xeikon, HP Indigo and Epson. A universal web tension interface can be used as well. The machine will synchronize to the speed from the press with a dancer arm/tension break that also gives the possibility to adjust the web tension between the press and the LUW500. A colour touch screen interface with graphic symbols instead of text simplifies operation and makes the module very user-friendly.



Options
  • Optional knife station with either razorblade slitting or crush knife slitting.
  • Web guide.
  • Antistatic system.
  • Dual rewind on single shaft web guide.
  • Slack loop interface.
  • Corona unit.

Technical Specifications

Specifications Metric Imperial
Web width 520 mm 20.5"
Substrate support 40 - 350 gsm paper and film
Max. roll diameter 1200 mm 47.2"
Max. roll weight 750 kg 1653 lb
Core diameter 76 or 152 mm 3 or 6"
Max. speed
 higher on request
30 m/min 98.4 ft/min
