Label diecutters
Highly automated converting lines for labels
Discover the unique world of labels with our GM catalogue

DC350Flex+ Premium finishing line offers the best in fast & automated finishing

  • PLUS-series is fully customizable
  • Maximum modularity
  • Fast speed die module – up to 130 m/min
  • Automated production
  • Jumbo roll unwinder and rewinder
  • Online support and remote diagnostics

Characteristics

This modular finishing platform will take your factory to the next level!

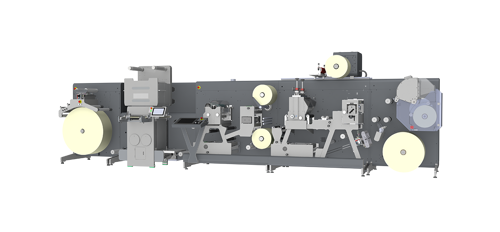

DC350Flex+ is a premium finishing line that provides the best in fast and automated finishing.

Featuring high-speed, semi-rotary varnishing and die-cutting as standard, this modular platform can be upgraded easily with value-added options including digital embellishment (DVM350), multilayer label, laser die cutter, hot foil, screen-printing modules, PlateLoader, much more.



Flexible and future-proof

The DC350Flex+ platform was born to be modular, so if the market changes, new modules can be retrofitted quickly.

Even third-party technology, such as a digital spot varnish module, can be integrated for true hybrid production.

Bespoke client options are available on the PLUS series.

DC350Flex+ is Industry 4.0 certified and fully compatible with all major digital presses.

This modular finishing platform sets completely new standards in the label industry, and will take your factory to the next level!



Features:
  • Jumbo roll unwinder with integrated roll lift
  • Semi-rotary flexo station(s)
  • PlateLoader – automatic flexible die-changing system
  • Double Speed Die module – running at up to 140 m/min
  • FastStrip – servo-controlled waste matrix stripping and rewinding
  • MultiLayer – multilayer option for peel & reveal labels
  • AutoKnives – automatic knife positioning system
  • Quick CrushKnives – ultra-quick set crush knife system
  • AutoTurret – servo-controlled automatic turret rewinder
  • Hot foil and screen-printing modules
  • Web-advance for fast roll change



Benefits:

High-end embellishment

Enables creation of astonishing varnish and foil effects, tactile finishes, dimensional effects and embossing embellishments.

Quick job change

AutoKnives module automatically positions up to 16 knives in just two minutes, saving valuable time on short-run jobs.

Peel and Reveal Multi-layer

For printers who are looking to diversify their product offerings, the multilayer module is a perfect opportunity to move into special label applications.

Adapts to all your needs

Regardless of your needs to die-cut labels or to create high-quality embellishments with hot-foil, screen printing or digital varnish, this machine offers maximum machine modularity.

3D Product
Configurator

3D Configurator 4 1

Try out our 3D product configurator and customize your finishing line according to your specific preferences and needs.

  • Customize your future premium finishing line.
  • Simplify the product and module selection process for your business.
  • Get a realistic preview of your finishing line.
  • Get fast and accurate pricing from our sales department.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 50 – 350 mm – 13.8
Substrate thickness 50 – 200 μm – 8 pt.
Die Station
Max semi-rotary speed 80 m/min 262 ft/min
Max full-rotary speed 130 m/min 426 ft/min
Die plate size  50 – 558,8 mm – 22”
Unwinder
Diameter max. 1000 mm 39.4”
Core diameter 76,2 mm 3”
Rewinder
Diameter max on dual shaft 700 mm 27.5”
Diameter max on turret 450 mm 17,5”
Standard core diameter 76,2 mm 3”
Waste matrix rewinder diameter Up to 800 mm on request Up to 31.5” on request
Semi-rotary Flexo Station - Flower style
Print cylinder size 228,6 – 635 mm 9 – 25”
Spot varnish with digital sensor register control and slow run included
Slitting Station
Knife type  Pneumatic Quick CrushKnives, shear, or AutoKnives
Minimum distance Quick Crush 27 mm 1.1
Minimum distance shear 14 mm 0.55”
Minimum distance AutoKnives 15,5 mm 0.61”
Dimensions
W x D x H Depends on configuration
