CS30 Cut sheet unit for HP 30” series

Cut to mark sheeting
LED, RGB Sick Contrast Sensor
Servo-driven in-feed roller and servo-driven cross-cutters for sheet separation
Special blade designed for life

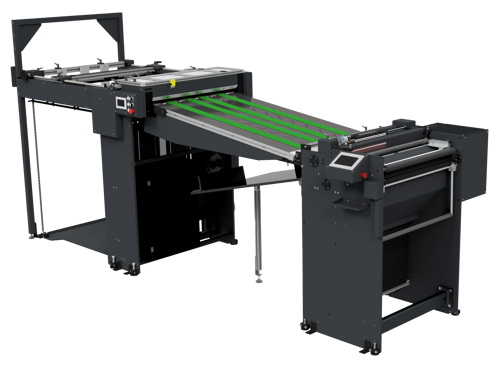

GM Finishing flexible sheeter CS30 - can have up to 60 m/min speeds and supports a wide range of substrates

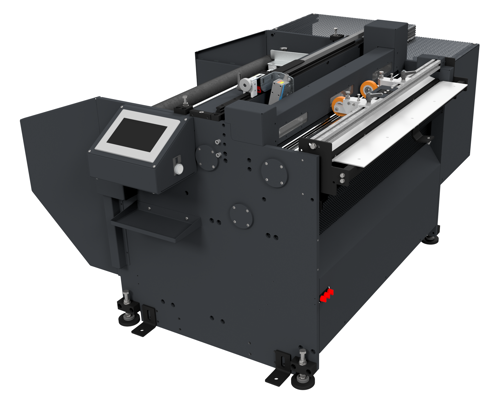

CS30 - roll-to-sheet cutters designed to work with wide web digital presses

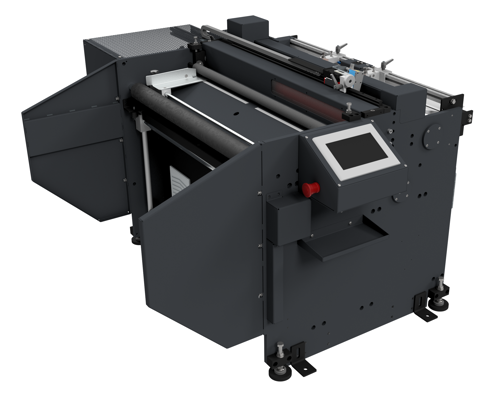

CS30 - Roll-to-sheet cutters that feature variable speed exit roller

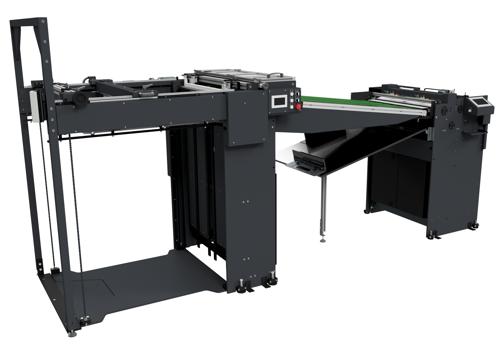

Flexible sheeter CS30 - cuts accurately to a printed mark or by distance

Characteristics

The CS30 is a flexible sheeter. This innovative model can have up to 60 m/min speeds and supports a wide range of substrates. It cuts accurately to a printed mark or by distance. The machine is operated from a user-friendly touch panel. The CS30 does not need compressed air for cutting (energy saving) and the blade is the only needed spare part. The machine is designed to work with wide web digital presses – such as the HP Indigo 200K series or similar.

GM offers a wide range of support modules for the CS30. First of all an inline module to run inline with a digital press. Large unwinders, rewinders, coaters, and stackers can also be added.

Features:

The antistatic bar for difficult materials
Automatic gate and exit wood table
Variable speed exit roller
Heavy duty build quality (15mm) thick steel side plate
Color touchscreen panel with animation
Electronic gear cam setup with different heights
Optional Stacker

Technical Specifications

Specifications	Metric	Imperial
Web width	50 - 765 mm	7.9 - 20.47”
Substrate type	SA label material, coated paper unsupported film (PP, BOPP, and IML), Coated paper board (wax)
Substrate thickness	40 μm - 600 μm
Speed max.	65 m/min or max. 7500 sph (depends on the size)	213 ft/min
Max. cut length	up to 50m	164 ft
Min. cut length	150 mm (without exit plate) or 250 (with exit plate)	5.9” or 9.8”
Cutting accuracy	+/ - 0,15 mm	+/ - 0.006”
Markers dimensions	5 mm (0.2”) wide and 2 mm (0.08”) high with enough contrast to be detected from the background
Power	3x400V+N+PE, 10A, 50Hz
Air supply	6 Bar
Weight	Approx. 500 kg	1102 Ibs
Varnishing roller	Ø97.2mm / SH65
Dimensions (WxDxH)	1,2 x 1,47 x 0,8 m	3.9 x 4.8 x 2.6 ft
