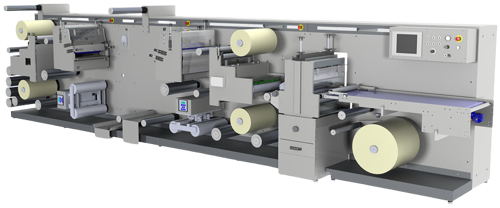

The XP500 line is designed to varnish, laminate, and die-cut a 500 mm wide web on both sides in one process. It integrates with your digital press and forms a full production line for postcards, brochures, and other products. The end product is placed on a conveyor or packed in boxes at the end of the line.
Designed for postcards, tags, pocket folders, and flyers the flexible die-cutter offers many possibilities. As standard, the line comes with a sling stacking system but more advanced systems can be added and customized with the exact applications you need.
XP500 runs with double tools for bending lines/folders.
All-in-all, it has a very service-friendly design that requires minimum maintenance.
07 January 2017
| Specifications | Metric | Imperial |
|---|---|---|
| Web width | 500 mm | 20” |
| Substrate | 80 - 500 µm | 3.1 - 19.7” |
| Speed | Up to 72 m/min | Up to 236 ft/min |
| Die cut repeat range | 50 - 558,8 mm | 2 - 22” |
| Max unwind diameter | 1200 mm (external unw. option) | |
| Output to | Conveyor/ stacker | |
| Lamination unwind diameter | Ø400mm | 15.7” |
| Flexo cliché range (dual side) | 228 - 482,6 mm | 9 - 19” |
| Knife type | Pneumatic Quick CrushKnives, shear or AutoKnives | |
| Core diameter | 76 mm | 3” |
| UV System | GEW Air cooled | |
| Dimensions | ||
| W x D x H | 7,2 x 1,3 x 1,8 m | 23.6 x 4.1 x 5.9 ft |
