Waste removal
Inline unit for slitting applications
Explore our 3D configurator

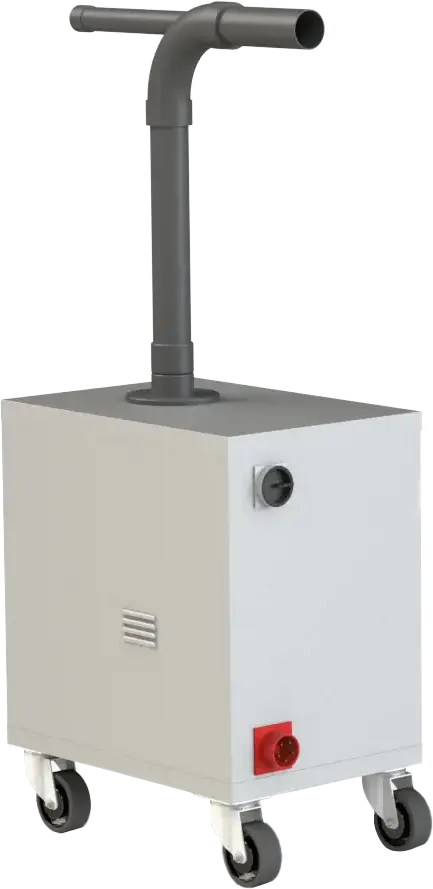

SU3 Waste Removal Unit

  • Designed to convey trim from slitters of almost any make to a waste bin
  • Being mounted on wheels, it can easily be moved from one machine to another


The SU3 represents an inline unit engineered for the purpose of facilitating slitting applications, and it is meticulously designed to efficiently transport trim material originating from slitters of virtually any brand and convey it to a designated waste bin. This integral system boasts a comprehensive set of standard features, which encompasses a virtually noiseless ventilator housed within a sound-absorbing enclosure, a strategically positioned suction nozzle, and an extendable attachment.

What truly sets the SU3 apart is its exceptional mobility, as it is equipped with wheels that enable effortless relocation between various machines. Within its standard configuration, it includes an impeccably quiet ventilator encased within a specialized cabinet that effectively dampens sound. The system's suction nozzle can be conveniently adjusted in height, spanning from 1.0 to 1.5 meters (3.3 to 4.9 feet), while the maximum distance from this nozzle to the trim knives can be customized within the range of 0.25 to 0.5 meters (9.8 to 19.7 inches), contingent on the specific material and thickness being processed.

Technical Specifications

Specifications Metric Imperial
Max. trim width 20 mm 0.8”
Max. trim extraction speed 150-200 m/min 492 – 656 ft/min
Dimensions (LxWxH) 0,6 x 0,4 x 0,6 m 2 x 1.3 x 2 ft
Weight 35 kg 77 lbs
