LR250 Label inspection rewinder for superior winding quality

  • Economical and compact space-saving design
  • Various label inspection functions
  • For standard and clear-on-clear labels
  • Forward and backwards rewind
  • Electronic web tension control
  • Simple table rewinder for good quality rolls

Characteristics

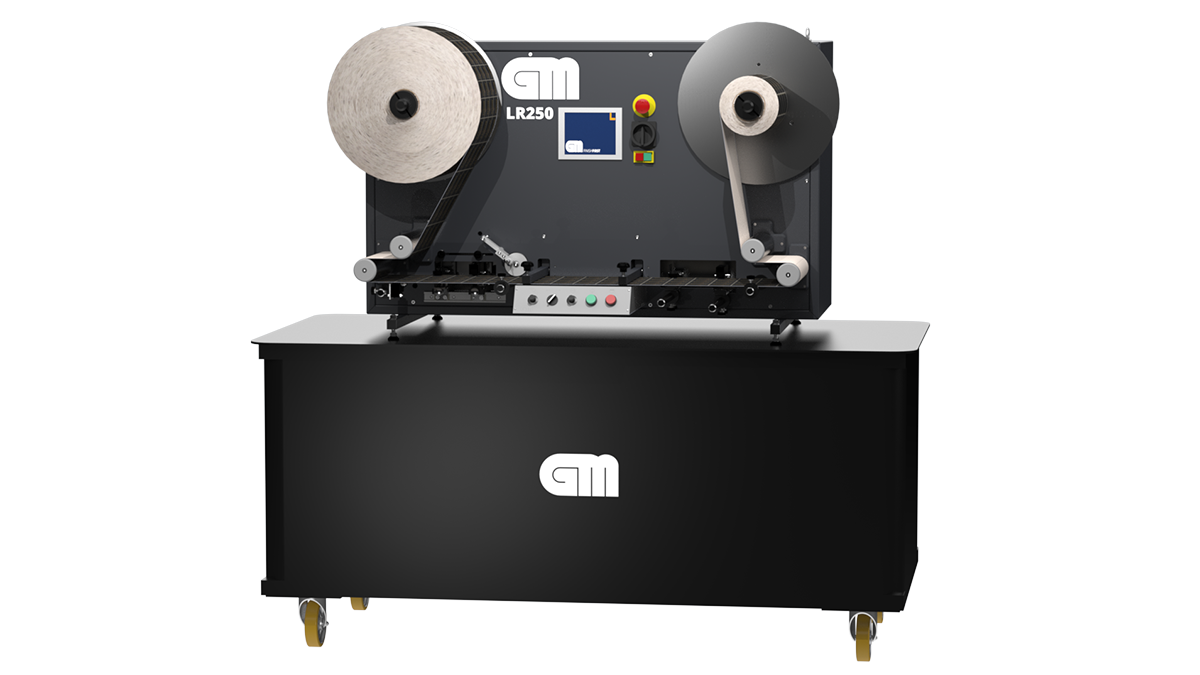

The LR250 is an economical Inspection Rewinder and comes as vertical tabletop model with splicing table and two motor controllers – one working as an unwinder and the other as a rewinder. The design offers control of the web tension which ensures superior winding quality.

The LR250 has expansion mandrels with sleeves easily exchangeable to other sizes. A touch panel makes the operation of the machine very easy with graphic figures showing the rewind direction, and the direction of rotation for the shafts. The machine has an integrated label counter.

The only optional device to be ordered to make the counting and inspection functions active is the relevant sensor. In this way it is easy for the user to upgrade the machine with the different options - the only thing needed is the sensor.

In case of a missing label, the machine stops and places the error on the splice table with high precision.

Other options include splice clamps and extra sleeves with different diameters.



Optional equipment:
  • Photocell for label counter.
  • Sensor for meter counter.
  • Sensor for splice detector.
  • Sensor for detection of missing labels and waste matrix.
  • Capacitive sensor for “clear on clear” labels.
  • Splice clamps.
  • Extra sleeves, diameter 25-120 mm.
  • Strobe, 8 W or 30 W lamp power.

Choose your sensor

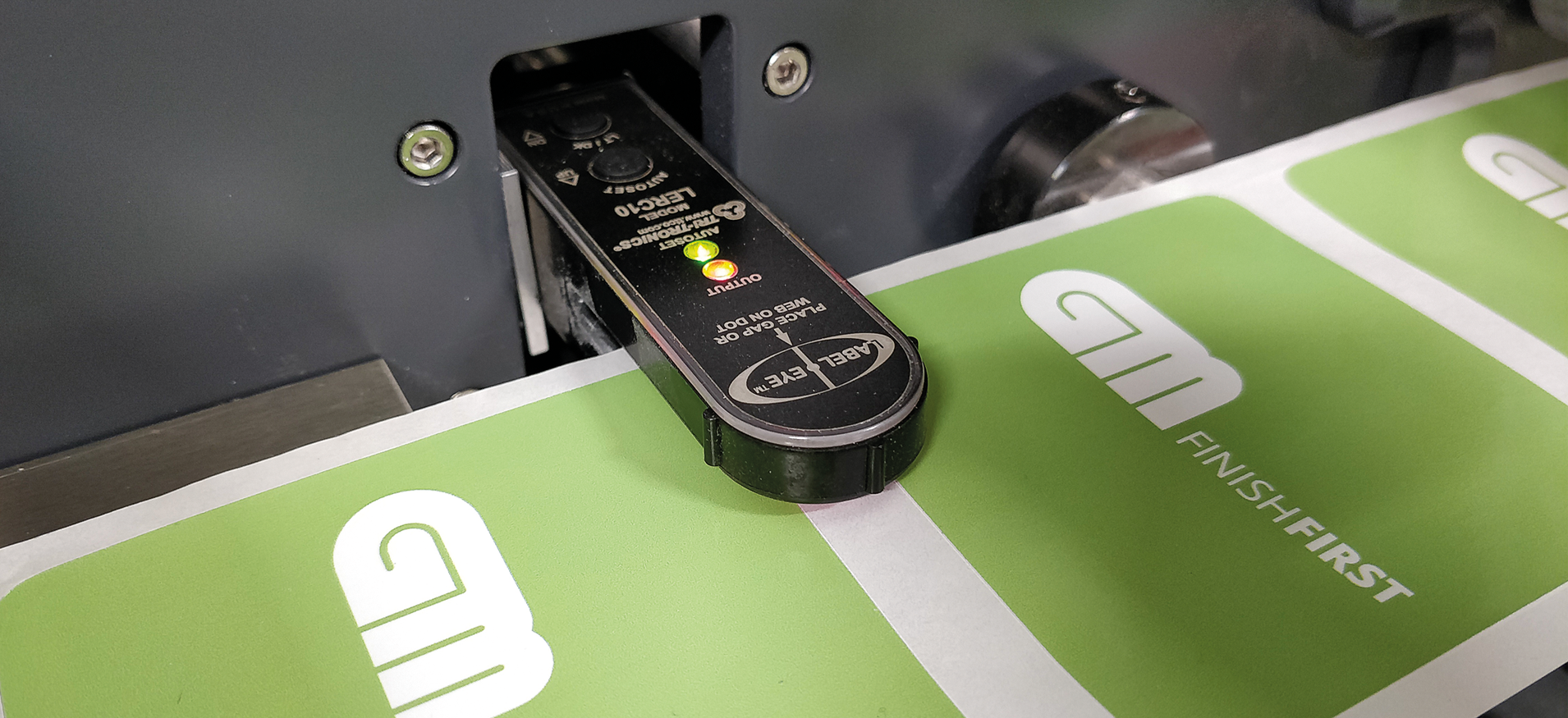

Depending on your needs, you can select the appropriate sensors for inspection - the missing label system, meter counter, splice detector or the capacitive sensor for “clear-on-clear” labels.

Outstanding rewinding results

Get high-quality rolls due to the two motors. One that controls the speed of the unwinder and the other controls the torque of the rewinder.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Max web width 250mm 4.3", 7" or 9.8"
Minimum web width 10mm 0.4"
Speed 100 - 300 m/min depending on diameter 328 - 984 ft/min
Max. unwind diameter Ø400 mm 15.7"
Max rewind diameter Ø350 - 400 mm 13.8 - 15.7"
Mandrel size 25 - 120 mm 1 - 4.7"
Dimensions LR250 (LxWxH)  1,3 x 0,8 x 0,8 m
Power / Air 200 - 240V+N+PE, 13A, 6 bar
