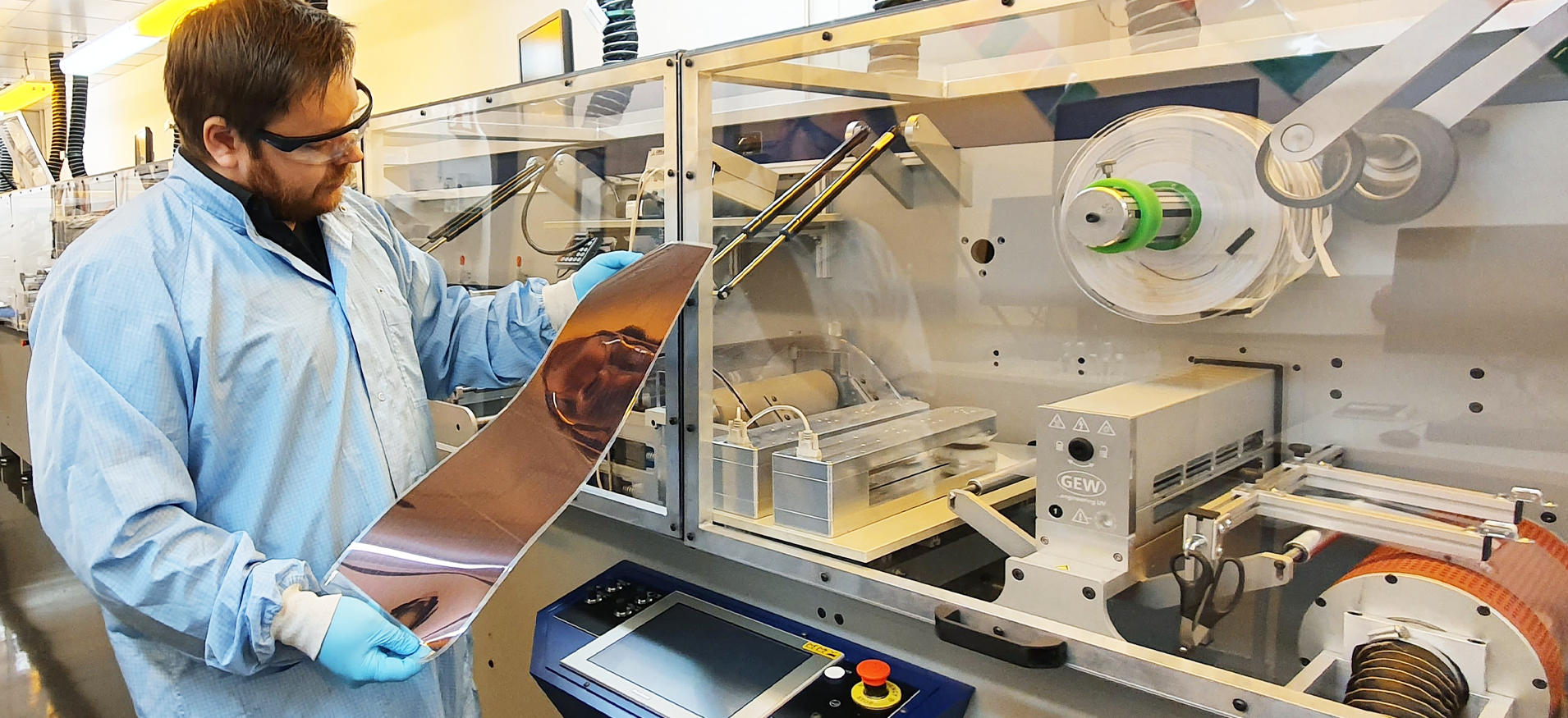

GM’s FM250 Slot-die Tabletop mini coater is an entry-level, compact platform for production and applied science in thin film applications. This cost-effective roll-to-roll machine features proven technology and design, tested with multiple processes for more than a decade.
The FM250 features a steady web drive and a universal platform for mounting different coating and curing options.
The small web width ensures minimal substrate waste. At the same time, the system is capable of running with rolls up to a diameter of Ø400mm (approx.500-1000m web length).
FM250 is an ideal machine to mimic large-scale production and is the natural step after spin coating experiments. The unit can be used in a controlled atmosphere, a clean room environment, or inside a glovebox.
|
TECHNOLOGIES Automated slot-die coating with heated roller; heat curing; pneumatic nip for controlled web handling; webguide for web control. |
|
|
APPLICATIONS Organic and perovskite photovoltaics; battery cells; Photodetectors; fuel cells; smart windows; OLED, LEC, and many more. |
|
29 August 2017
05 December 2016
| Specifications | Metric | Imperial |
|---|---|---|
| Web width | 180 mm or 250 mm | 7” or 9.84” |
| Coating head options | Slot-die head and inkjet head | |
| Curing | IR, UV, and Hot Air | |
| Speed | 0 - 30 m/ min | 0 - 98.4 ft |
| Low ink usage - in the µL area for gravity feed heads | ||
| Large easy-to-use touch screen | ||
| Weight | 180/210 kg | 396.8/ 463 Ibs |
| Dimensions | ||
| W x D x H | 2000 x 760/ 820 x 820 mm | 78.7 x 29.9/ 32.3 x 32.3” |
